Jack Strope

Lab 1A

In this part of the lab, I hooked up the Artemis board to my laptop and uploaded several example programs to test the hardware.

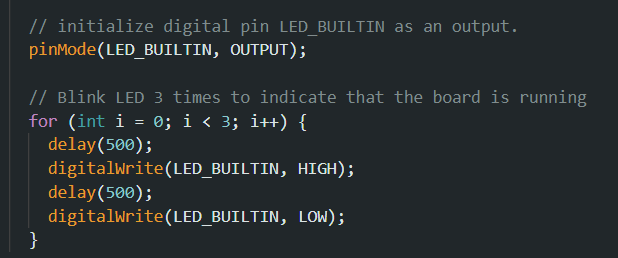

After connecting the board to my computer and selecting the board in the Arduino IDE, I ran Blink, an example sketch built in to the Arduino IDE. The program simply swithces the onboard LED on and off every second.

The next example script run on the board was Serial, which allows the user to type characters into the Serial Monitor in the Arduino IDE and echoes them back.

The next example script run was AnalogRead, modified to continuously print the temperature sensor's reading in Fahrenheit. Notice in the video below, the temperature starts around 85°F, but after blowing on it for a couple seconds, it lowers to around 82°F.

The last example script run is MicrophoneOutput, which displays the loudest frequency detected by the microphone.

Since I'm enrolled in the 5000-level version of the class, I did the additional task of making my own script to blink the LED when a "C" note (~261Hz) is the loudest frequency. To do so, I simply modified the MicrophoneOutput script, adding a simple conditional that writes HIGH to the LED if the loudest frequency is between 258Hz and 264Hz (to account for noise/interference that affect the reading) and LOW otherwise.

Lab 1B

In this part of the lab, I established Bluetooth communication between the Artemis board and my laptop via Bluetooth Low Energy (BLE).

After ensuring the latest version of Python was installed on my computer, I set up a virtual environment, installed the necessary Python libraries, and installed the codebase provided in the lab handout. I then activated the virtual environment and launched JupyterLab.

The next step was to establish a connection between JupyterLab on my computer and the Artemis board via BLE. To do so, I first ran the ble_arduino.ino script from the codebase on the board to print its MAC address. I copied this into the file connections.yaml in the Python virtual environment. I then generated a UUID using the uuid library in JupyterLab and copied it to both connections.yaml and ble_arduino.ino. I then verified that the connection between the board and computer was successful with some test commands provided in a demo Jupyter notebook.

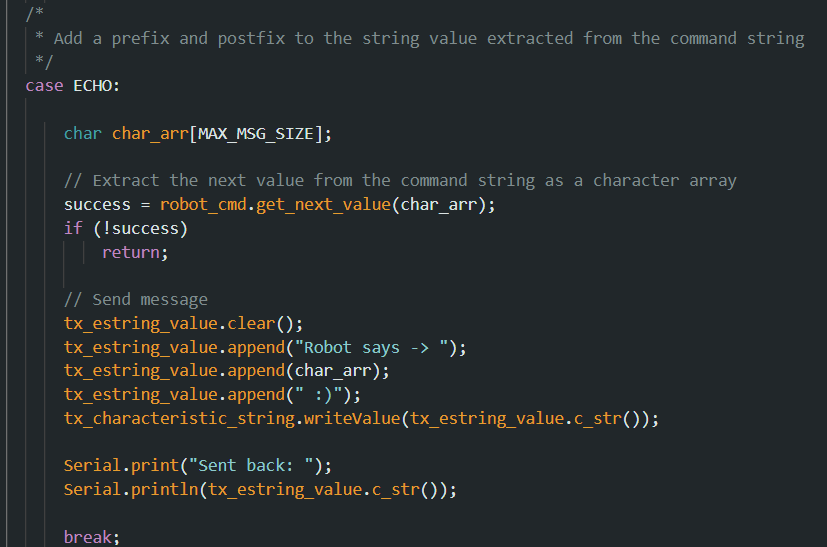

First, I implemented the ECHO command, which simply sends the input string back with an added prefix and postfix. The implementation is shown below.

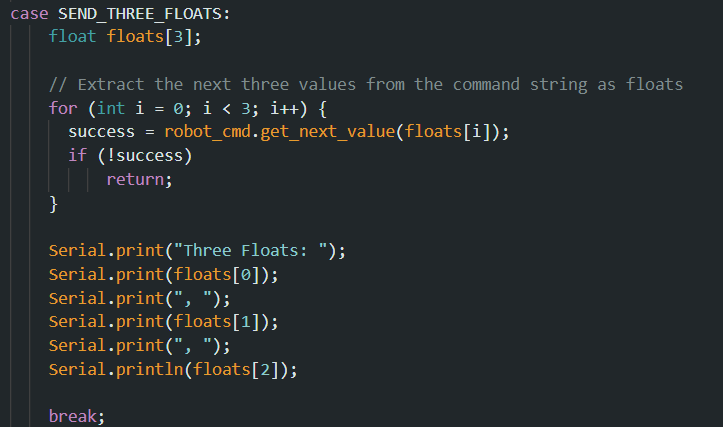

The next task was to use the SEND_THREE_FLOATS command, which extracts the three floats from the message sent from JupyterLab to the board and prints them to the serial monitor. The implementation is shown below.

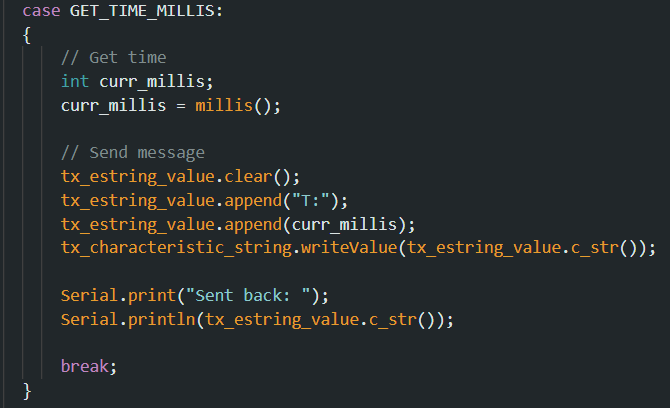

Next, I added a new command GET_TIME_MILLIS which makes the Artemis board respond with the current time in milliseconds.

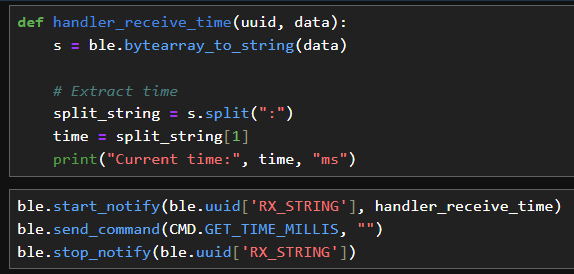

Next, I defined a notification handler in the Jupyter notebook to extract the time from the response string sent by the GET_TIME_MILLIS command. The following code snippets show the handler and then the commands used to receive the time using the handler.

In this task, I determined how fast messages can be sent by making a new command that repeatedly sends the current time in milliseconds to Jupyter for 100 iterations.

The code used to receive the messages in Jupyter accepts messages for 10 seconds to ensure all 100 go through. This code and the first several received timestamps are shown below.

By subtracting the last timestamp from the first and dividing by the number of messages, we calculate the effective data transfer rate to be 100 messages / (26.165s - 23.596s) = 38.926 messages per second.

Setup

Setting up the IMU with the Artemis board was fairly straightforward. After installing the necessary library in the Arduino IDE, I connected the IMU to the board using a QWIIC connector. I then ran the library's example script, which collects and prints the sensor's acceleration, gyroscope, magnetometer, and temperature data. The data is sent to the MCU via I2C, so to identify which device to receive data from, the script defines a macro AD0_VAL, the last bit of the I2C address. For the IMU, this value is 1 by default. Additionally, I added the following code to the setup() function in this script and the BLE script to serve as an indication of when the board starts running.

To more easily monitor the x, y, and z acceleration data, I opened the Serial Plotter, which plots the data in real time. This is shown in the video below. When the IMU sits flat on a surface, the x and y acceleration curves stay steady around 0, while the z curve stays steady around 1000 milli-g, or 1g of acceleration. This is due to gravity accelerating the board downward at 1g at all times. If I accelerate the board in any direction, the curve cooresponding to that direction responds accordingly. If I rotate the board, the acceleration due to gravity shifts from the z-direction to the x/y directions.

Accelerometer

Next, I modified the example script to calculate the roll and pitch of the IMU using the following equations.

To check the accuracy, I recorded the measured roll and pitch for -90°, 0°, and 90°. For 0° for both roll and pitch, I held the IMU down on a flat surface. I measured -90° and 90° for roll and pitch separately, placing the IMU at 90° relative to the horizontal by holding it against the side of a box on the desk. The results are shown in the images below.

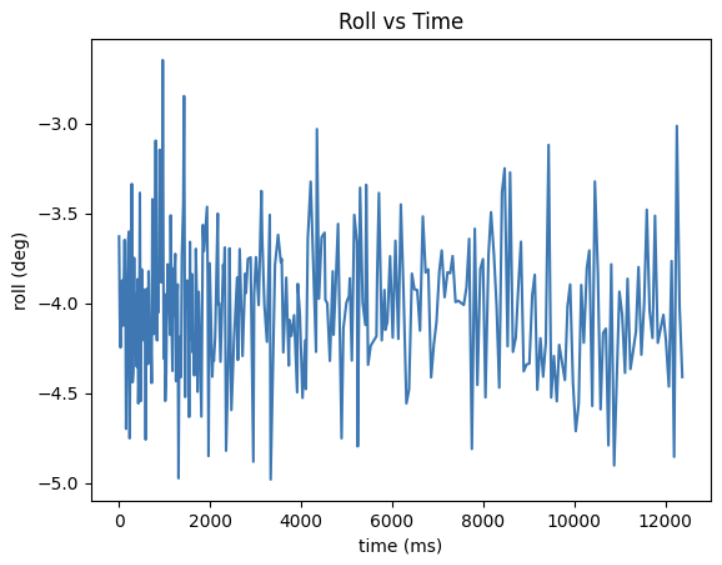

Though noisy, the data appears very accurate, to within a degree or two in each of the above measurements.

To analyze the data in Python, I added a new command to the BLE script to continuously calculate the roll and pitch in a loop and send the data (with timestamps) to Jupyter. With the data in Jupyter, I then plotted roll and pitch vs time. The results are in the plots below.

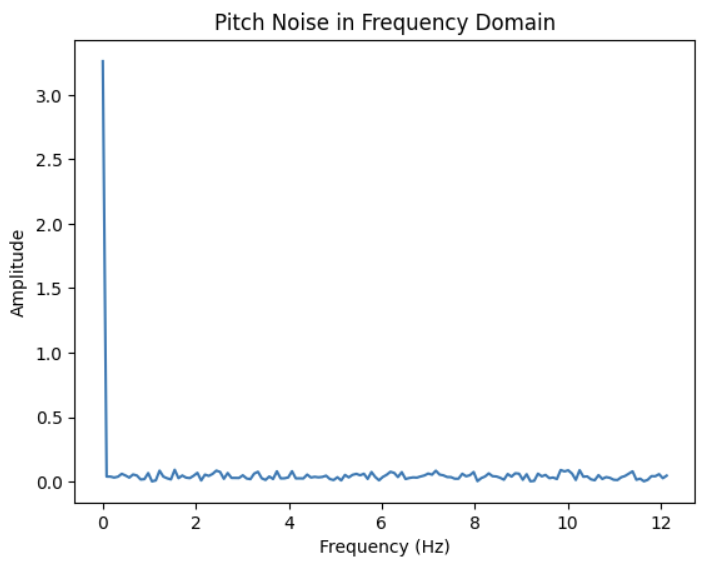

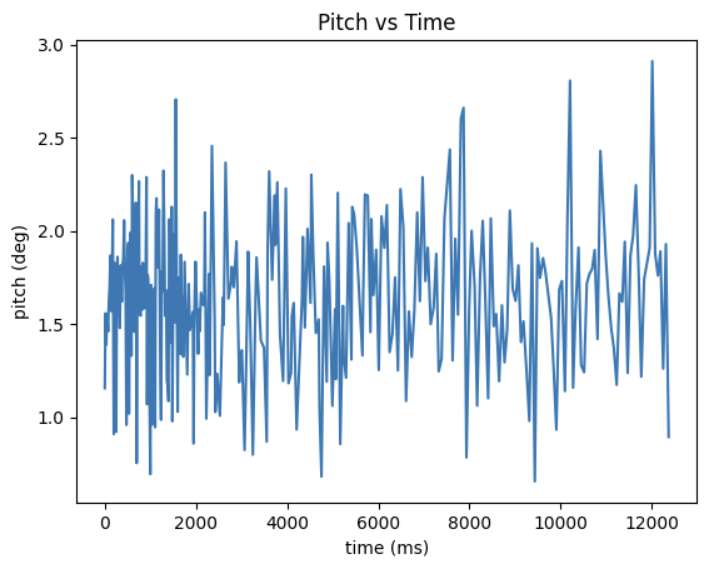

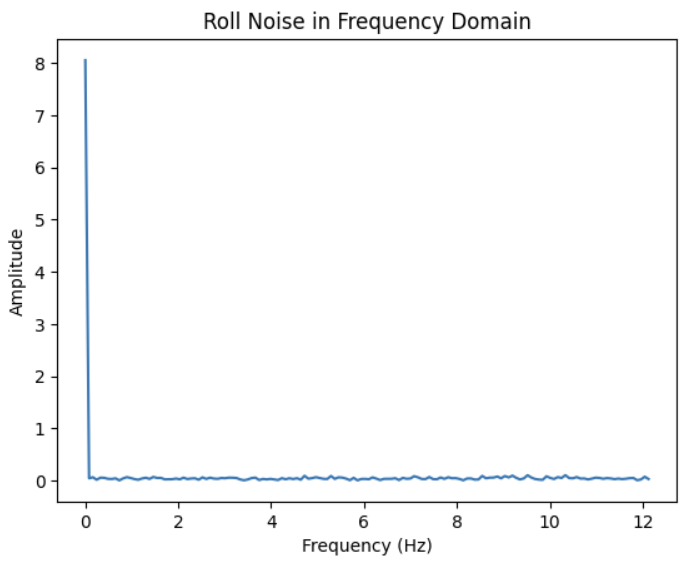

We can analyze the frequency of the noise by plotting the Fourier Transform of the data. To do so, I used the following Python code to compute and plot the FFT of the roll and pitch data.

This generated the plots below.

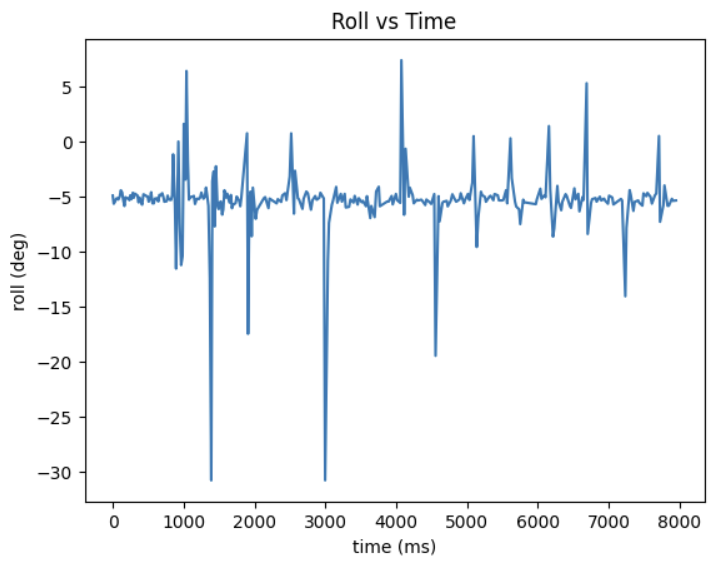

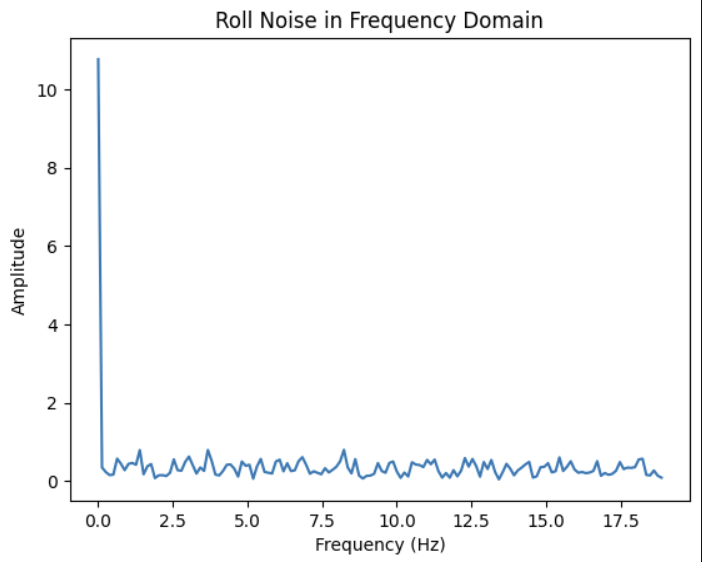

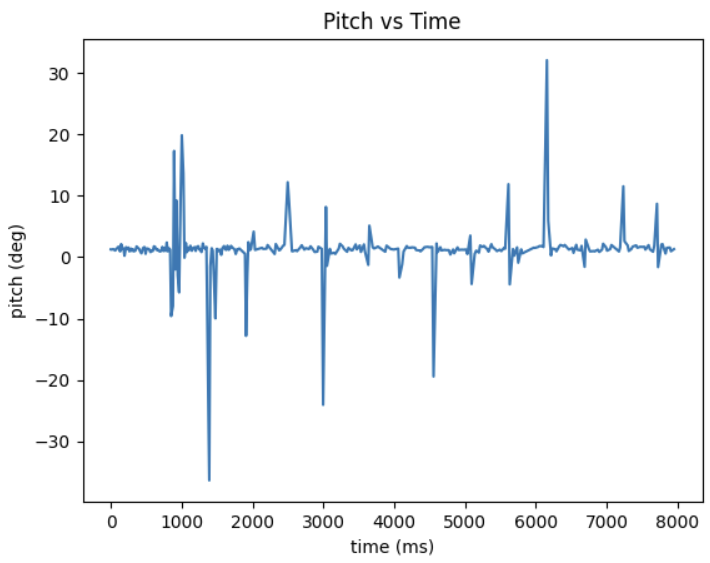

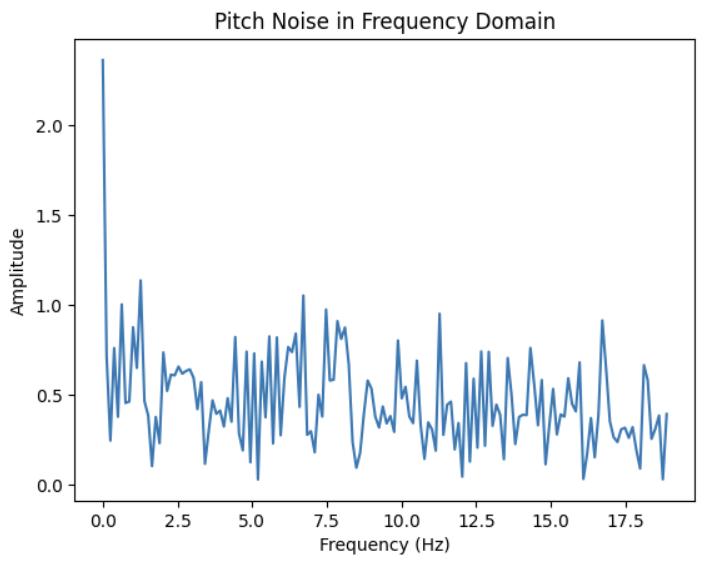

I then gathered new data while gently hitting the table to generate vibrational noise and repeated the above to generate the following plots.

Even in these cases, the amplitude drops significantly above 0Hz and stays relatively consistant after. Based on the plots, I'll estimate the cutoff frequency to be about 1Hz.

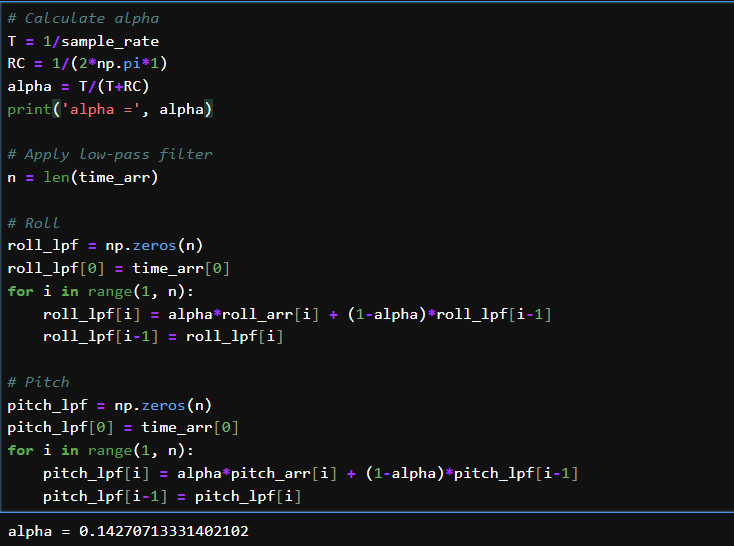

Using this cutoff frequency, I then implemented a simple low-pass filter to reduce the noise level of data sent to Jupyter.

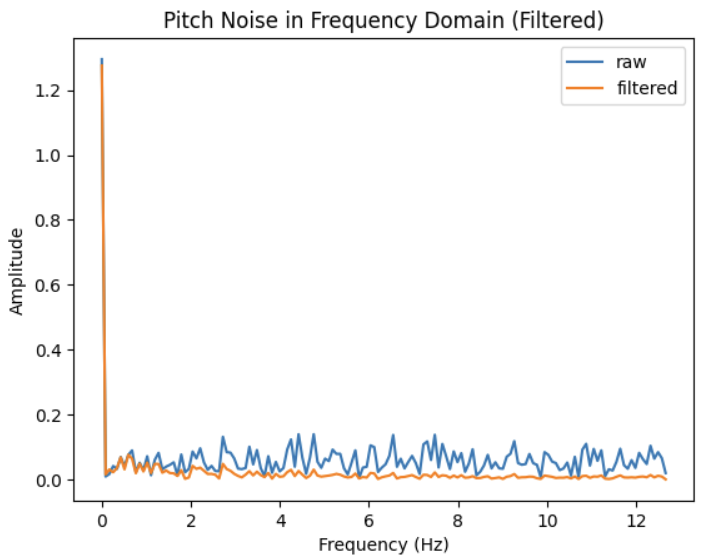

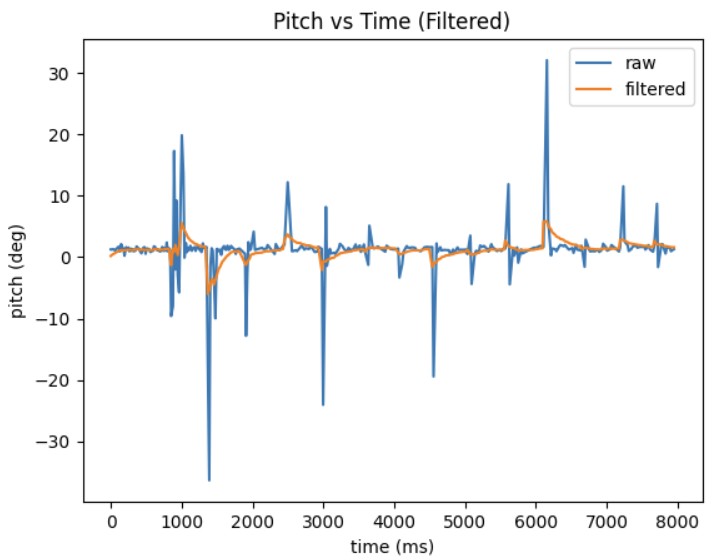

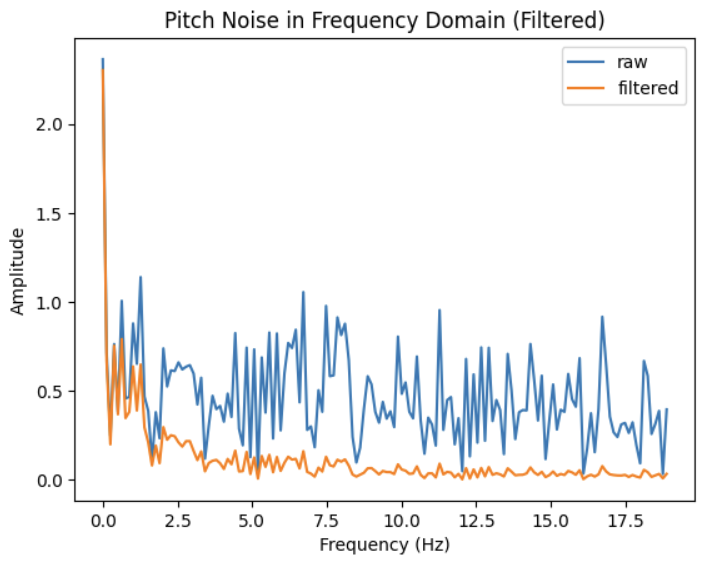

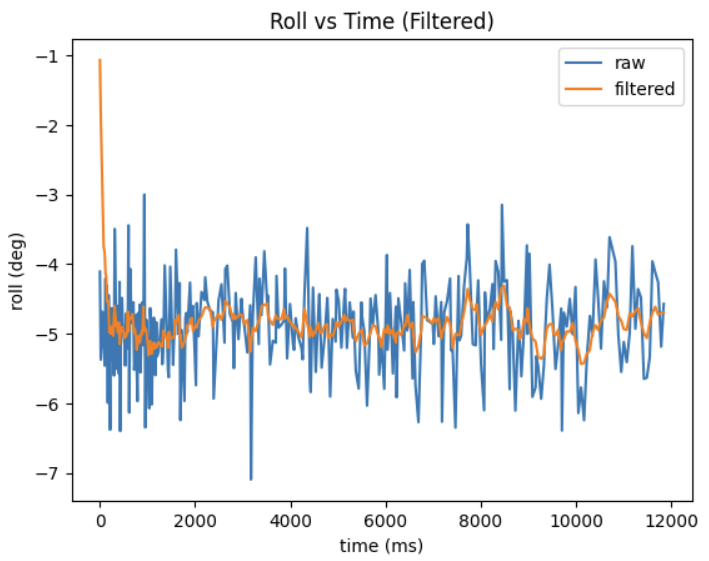

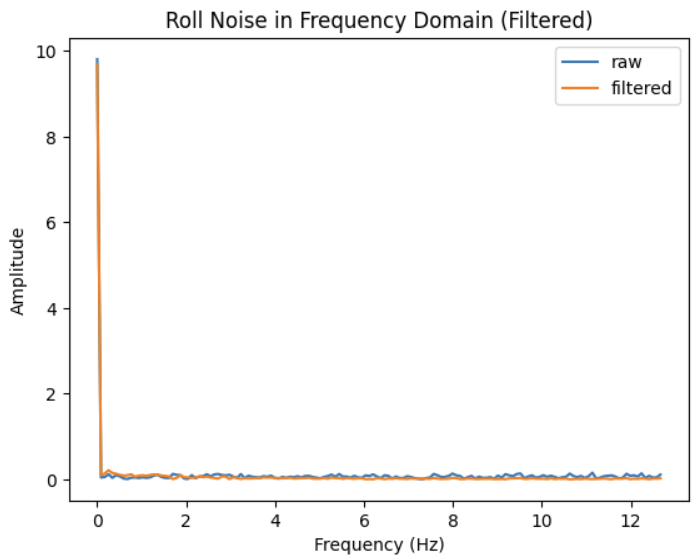

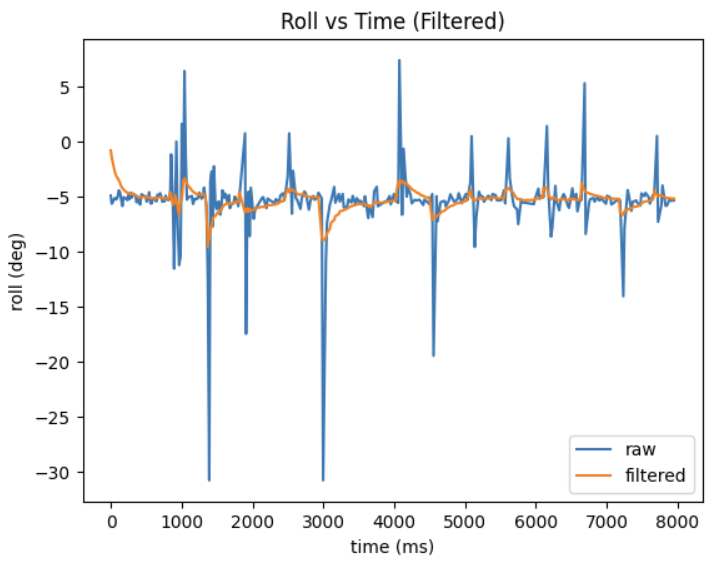

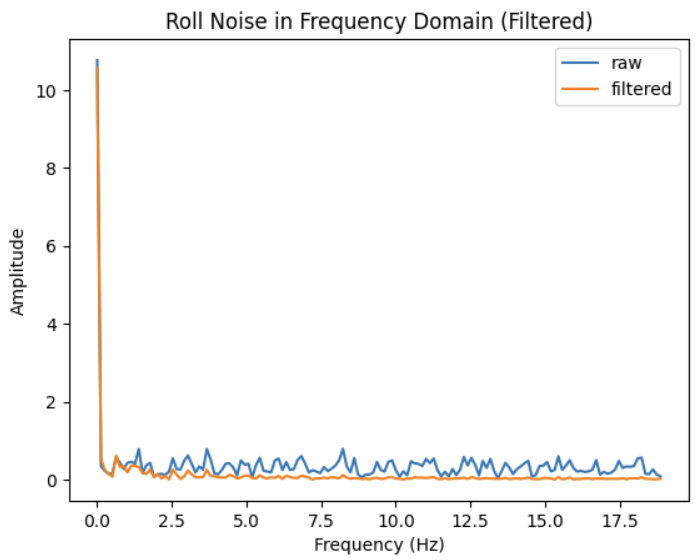

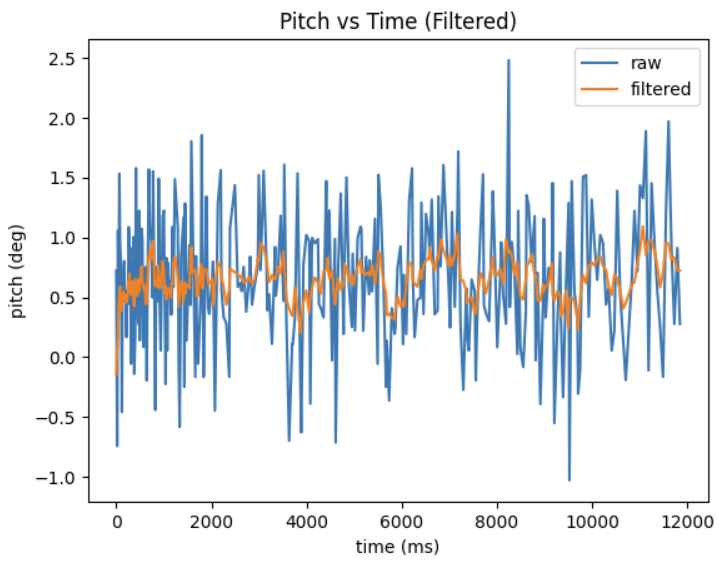

Replotting this data for both of the above cases, I obtained the following plots.

We can see from the plots that the low-pass filter is quite effective. It can be made more effective by lowering the cutoff frequency. This would more aggressively filter out high frequencies (noise), but at the risk of filtering out data that should be kept.

RC Car Testing and Stunt

To finish this lab, I mounted the battery on the RC car as it comes in the box and tried it out to get a feel for how it should move. I used the remote controller to drive the car around the hallway in the video below. It's worth noting that, at the speed the RC car moves, the tires have very poor traction on the hallway floor, making it easy to turn in place, but difficult to steer while moving. This is in large part because, when controlling it with the RC controller, the motors are either fully on or fully off, making it difficult to slow down to turn without drifting.

To improve traction, I moved to a carpeted room and tried driving the car there. The traction was significantly improved, allowing the car to be controlled—in particular steered—much more easily. It also makes it much easier to flip the car without requiring as much speed, but this also means the car is more prone to flipping unintentionally. In this higher-traction environment, I played around with the car and attempted some stunts. My favorite—shown in the video below—was what happens when I flip the car and continue driving the motors at full speed. The car continues flipping without really moving anywhere. If I steer at the same time, the car looks like it's breakdancing!

Prelab

Before the lab, I considered some future decisions to make. Both ToF sensors have the same I2C address (0x52), so to use them at the same time, I decided to change the address of one sensor as part of the setup function. To do this, one sensor needs to be powered down via its shutdown pin before changing the address, so that the two sensors have distinct addresses.

Another decision to make is where to place the ToF sensors on the robot. One should obviously go on the front, since the robot mostly moves forward. I considered placing the other on the back so that the robot could detect obstacles while moving in reverse, but decided it would make much more sense to place the second sensor on the side, so that the robot can map out its environment to navigate through a maze, for example. Thus, the robot will be able to detect obstacles in front of it and to one side, but not behind it or to the other side. For the sake of obstacle avoidance, the only real case in which I'll need to be careful is when the robot moves in reverse—the side sensor will be more for environment mapping than for obstacle detection.

As for wiring for this lab, the lab kit includes four QWIIC connector cables—two short and two long. One will be used to connect the Artemis to the breakout board, and three will be used to connect the breakout board to the IMU and the two ToF sensors. Since the positions of the ToF sensors are quite important, and the IMU should be close to the center of the robot along with the Artemis board and the breakout board anyway, I decided to use the long wires for the ToF sensors.

Lab Tasks

First, I powered the Artemis board with one of the 650mAh batteries. To do so, I first had to change the connector on the battery to a JST connector. I cut the wires (one at a time!) near the old connector, soldered them to the JST connector wires, and applied heat shrink to insulate the soldered portion of wire. I then plugged the Artemis board in to the battery to power it on and sent it commands via BLE to ensure it was properly running the uploaded BLE script.

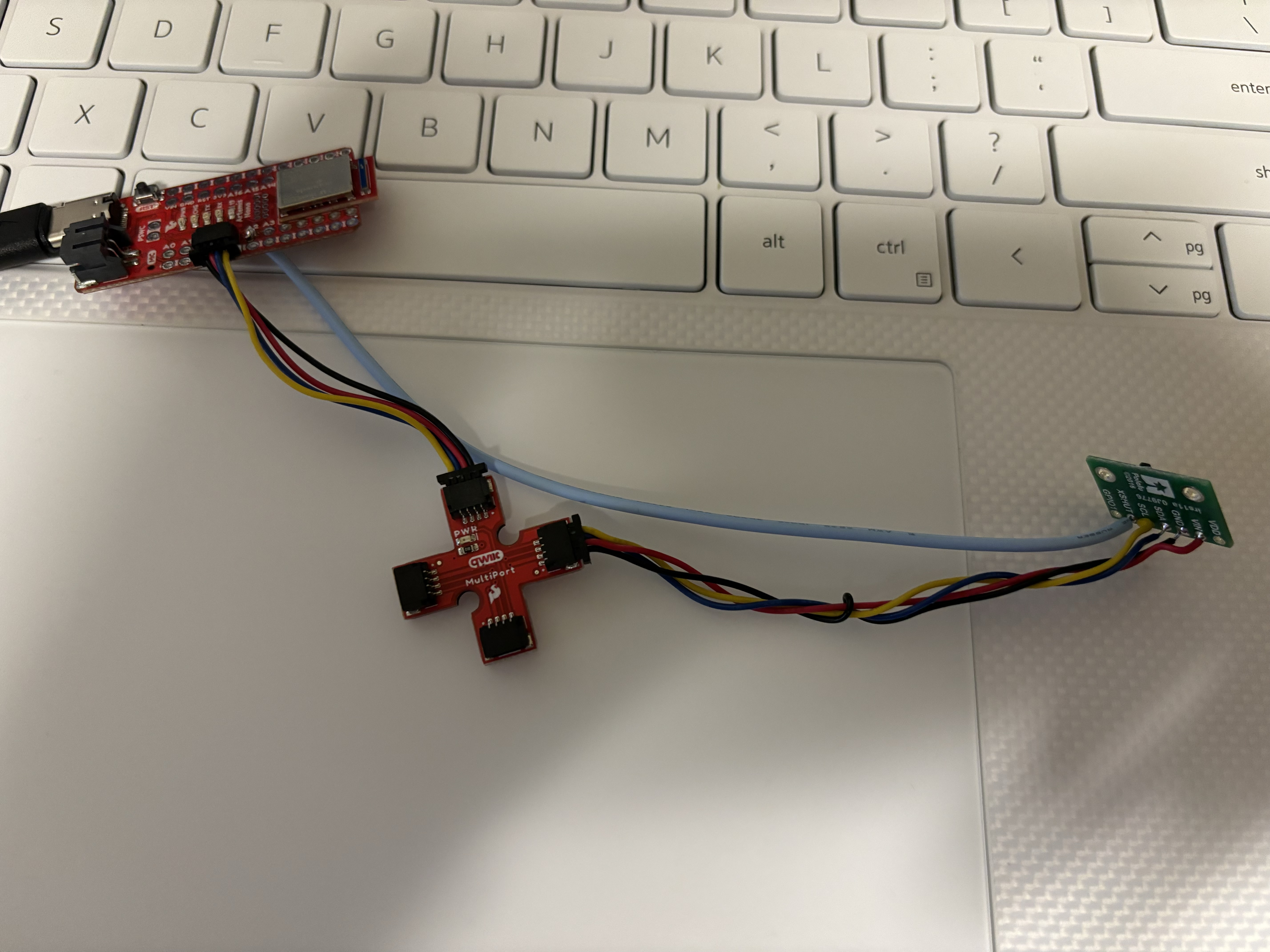

Next, I connected the QWIIC breakout board to the Artemis and the first ToF sensor to the breakout board. To connect the ToF sensor, I cut the four wires on one of the long QWIIC cables and soldered them to the appropriat pins on the sensor (red -> VIN, black -> GND, blue -> SDA, and yellow -> SCL). Since the shutdown pin (XSHUT) needs to be connected on one of the sensors, I also soldered a wire to this pin and soldered the other end to pin 2 on the Artemis board. The setup is shown in the picture below.

Next, I ran the Example1_wire_I2C script to make sure the I2C address of the sensor is being accurately detected. This results in the following output to the Serial Monitor.

Though the datasheet lists the address as 0x52, the script detects 0x29—this is 0x52 right-shifted by one. This is because the least-significant bit of the address is used to identify whether the device is reading or writing, rather than identifying the device. Thus, the detected address only considers the upper seven bits.

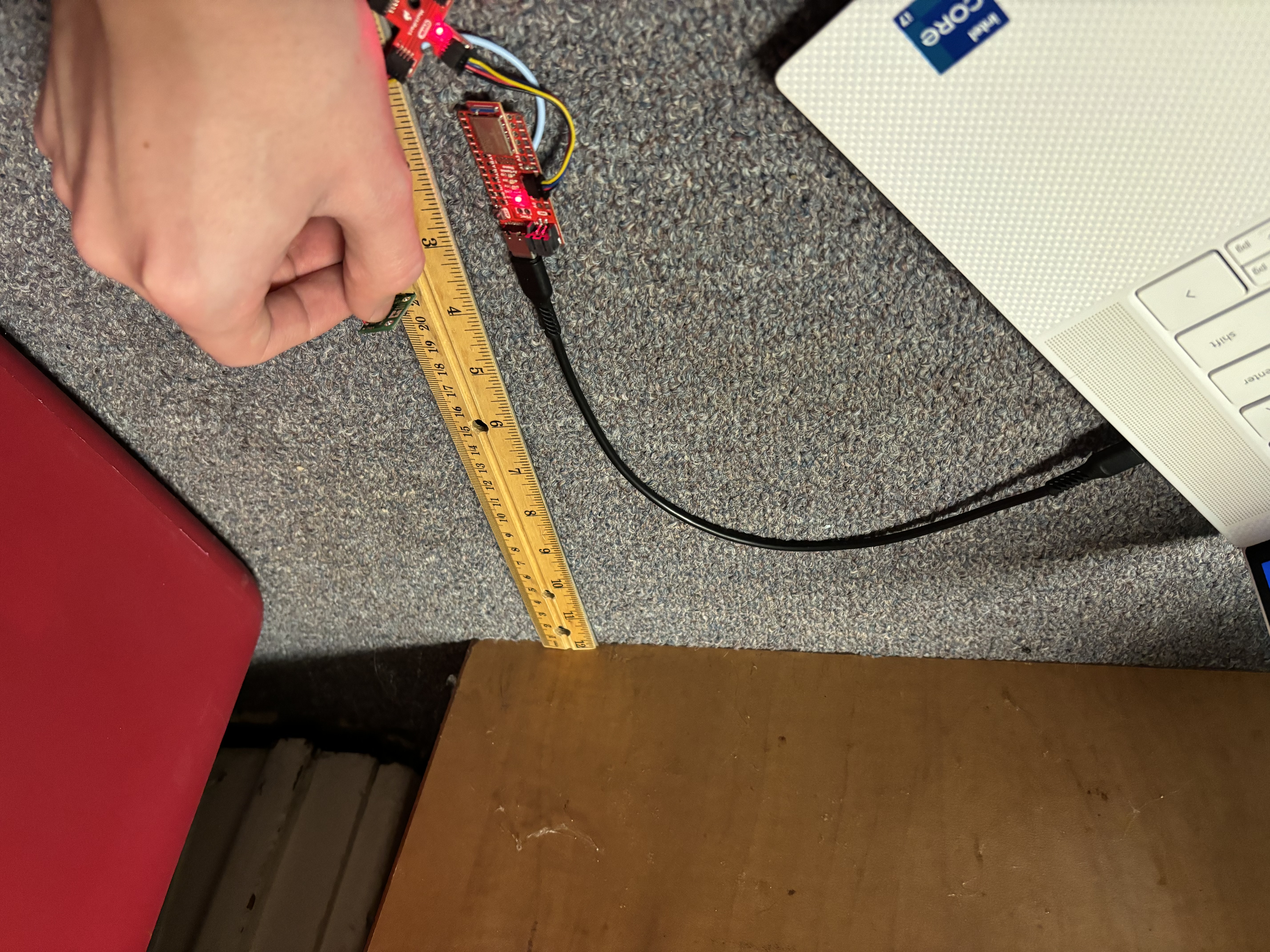

Finally, I tested the sensor by measuring several distances from the wall at set positions along a ruler. Of the sensor's three distance modes (short, medium, long), I decided to use the short mode for now, since this provides the greatest accuracy, which will be useful for accurately mapping the robots environment in future labs. When the sensors are mounted on the robot, I may switch the front sensor to long-distance mode so it can detect obstacles faster, if it's not detecting obstacles fast enough. My setup for measuring data is shown below.

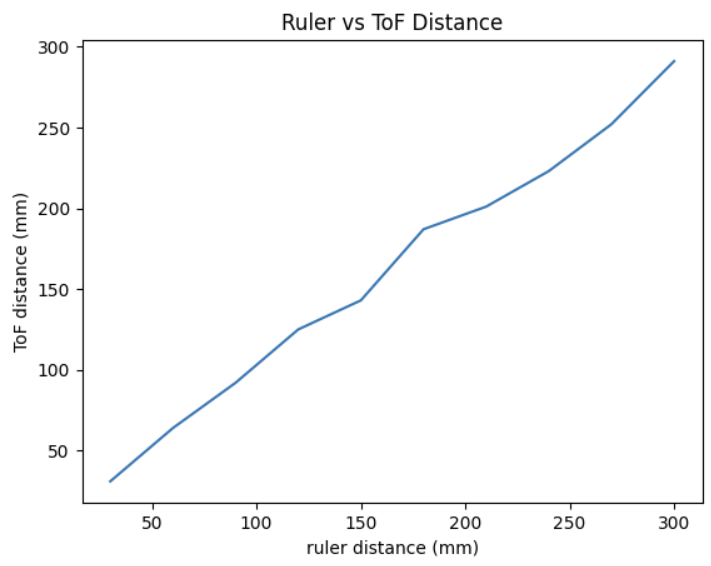

I measured 10 distances along the ruler and plotted them below. The measurements are accurate for the most part for all measured distances, though accuracy decreases slightly at farther distances.

Next, I hooked up both ToF sensors simultaneously. I repeated the wiring as with the first ToF, though I did not connect the shutdown pin since this is only needed for one sensor.

Prelab

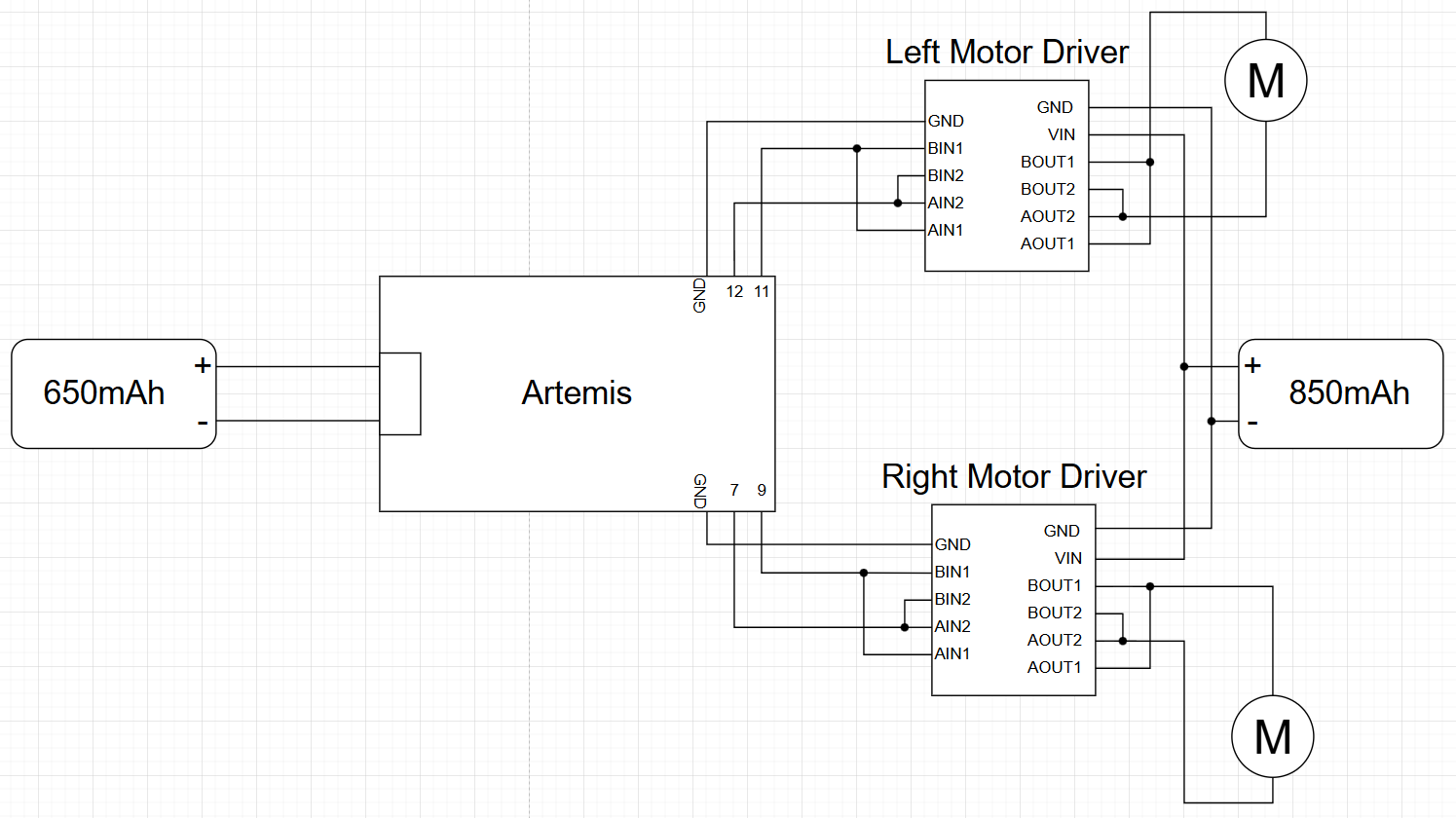

Since this lab involved many soldered connections to build the full circuit, it was important to plan out the connections before I started soldering everything. I decided to use pins 7, 9, 11, and 12 on the Artemis to generate the PWM signals for the drivers—primarily due to their position at the end of the board making them optimal for my planned physical configuration. The connections between the motor drivers, Artemis, and batteries are shown in the diagram below.

Two separate batteries are used here—one powering the Artemis and the other powering the motor drivers—because the motors draw high current, are very noisy, and generate significant EMI as they rapidly switch polarity. This can create large voltage spikes that could interfere with or possibly damage sensitive electronics.

Lab Tasks

First, I connected one motor driver to the Artemis and to a power supply. I connected the driver to a DC power bench set to 3.7V (the battery's voltage) for this part, since the battery doesn't typically last long. To test that PWM signals can be properly generated and output to the motors, I used the analogWrite() function to generate PWM signals on the Artemis and connected an oscilloscope to the cooresponding output of the driver. The images below show the setup and oscilloscope measurement with one channel connected to OUT1 and the other to OUT2. Here, OUT1 has a duty cycle of 0 and OUT2 has a duty cycle of 25% (63 out of 255 max). This corresponds to the motor spinning in reverse.

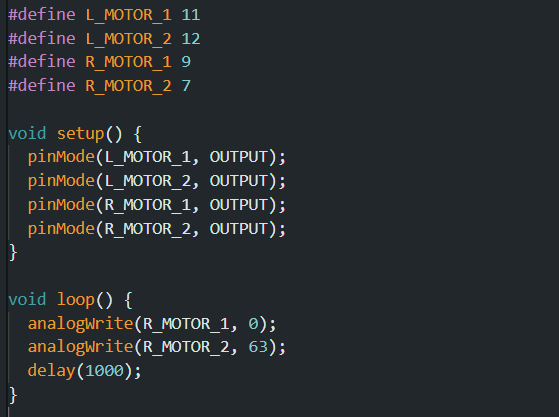

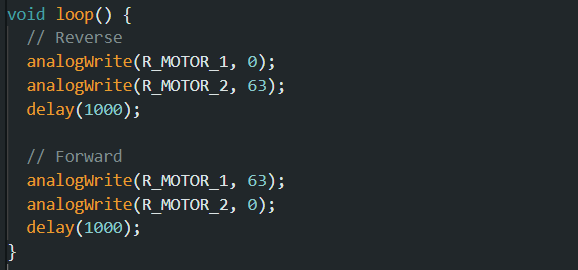

Simple code for generating PWM signal cooresponding to the motor spinning in reverse

Setup—the power supply is off to the left side, connected to the red and black wires on the driver.

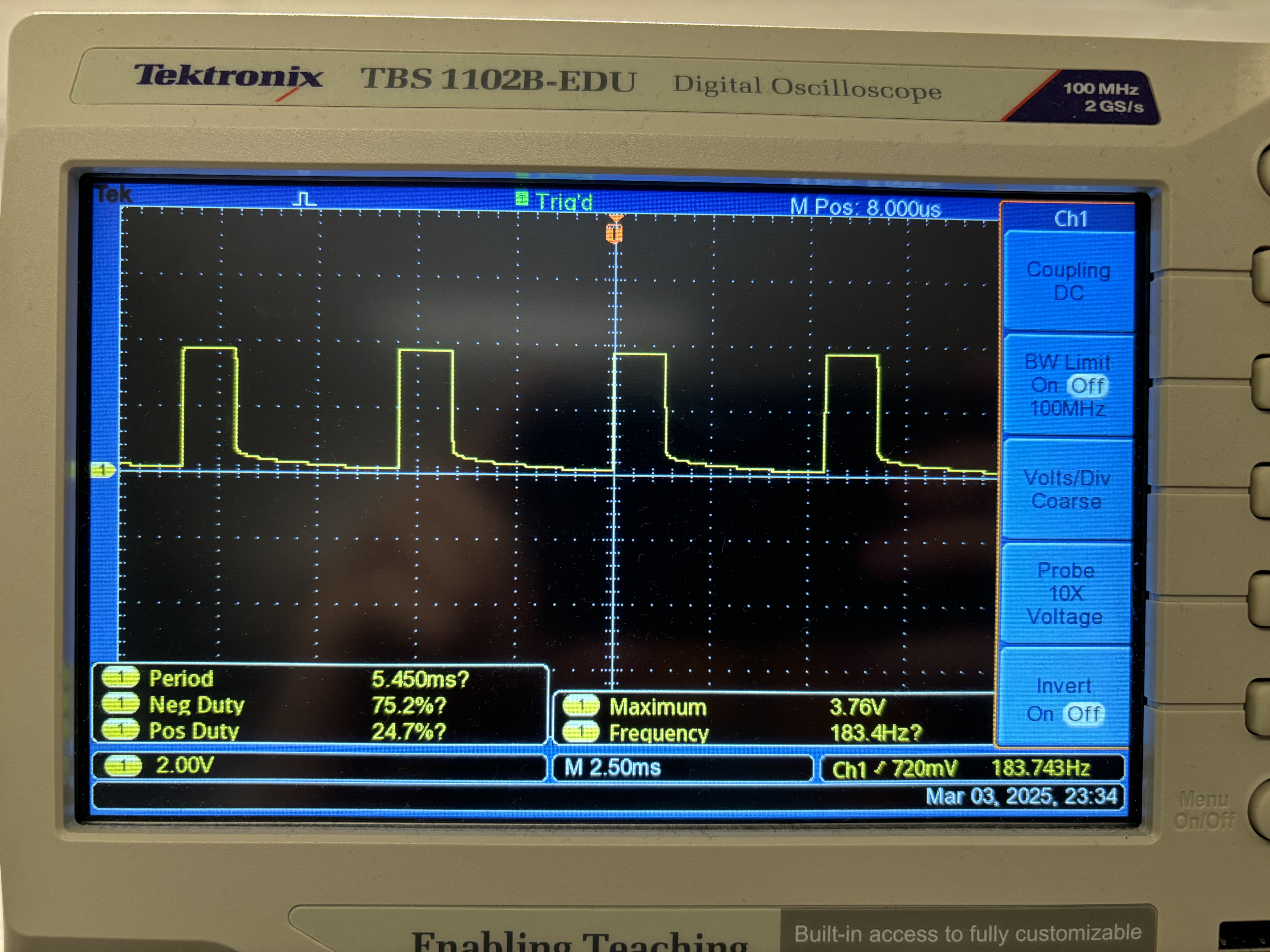

Output with 25% duty cycle on channel 1 and 0 on channel 2

Next, I took apart the car to test the motors themselves. I removed the control PCB and instead connected the leads of one motor to the outputs of the driver. Placing the car on its side, I then modified the code above to drive the motor in reverse for one second, then forward for one second in the loop.

Next, I connected the 850mAh battery to the driver instead of the power bench to ensure the motor can be driven on battery power. I then repeated the above for the second motor driver and the other motor.

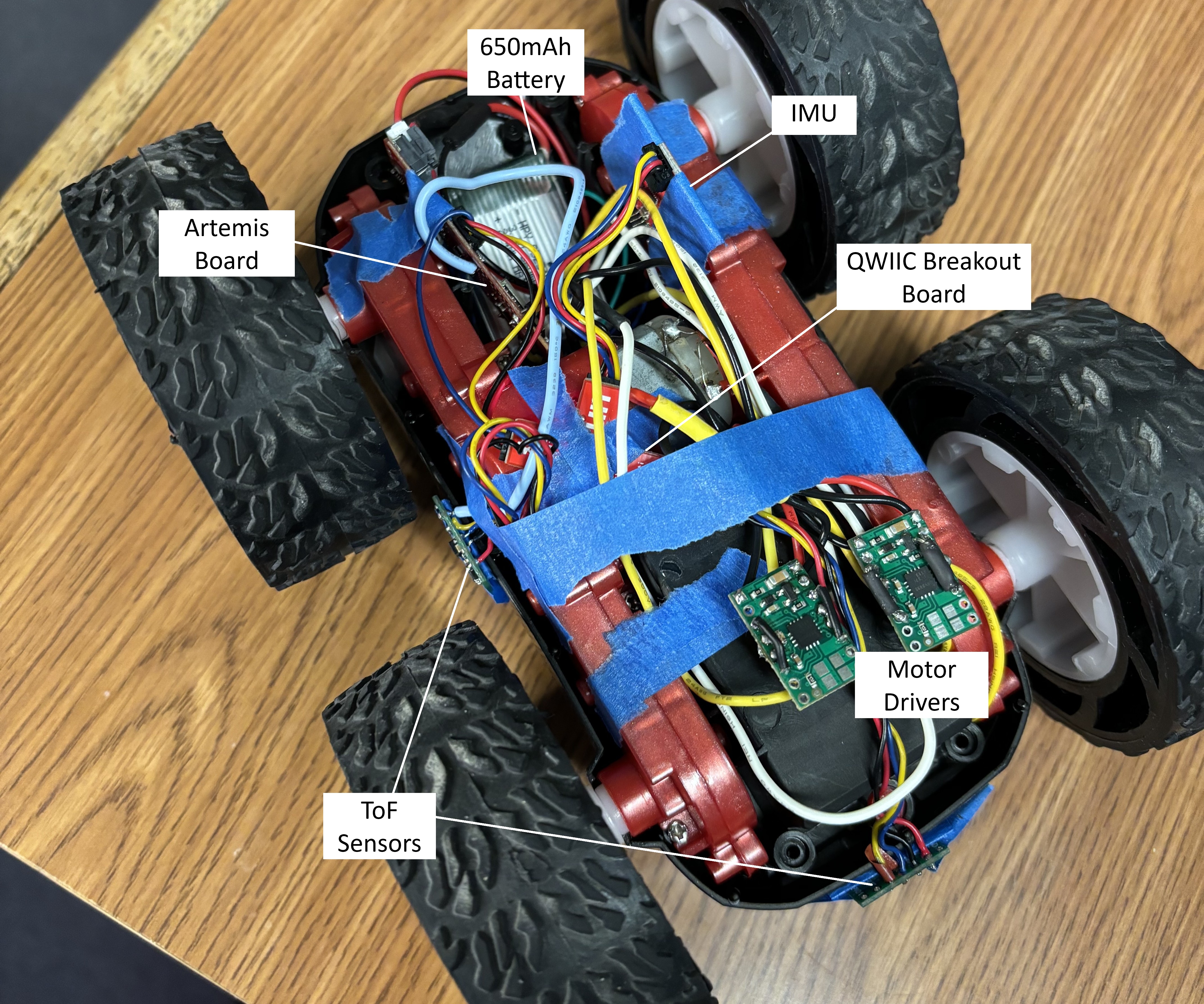

With the motors tested, I installed everything to the car, securing the elctronics in place with tape. The finished product is shown below.

Note that the 850mAh battery is not visible here; it is secured in the battery compartment on the underside with the wires fed through a hole to the drivers.

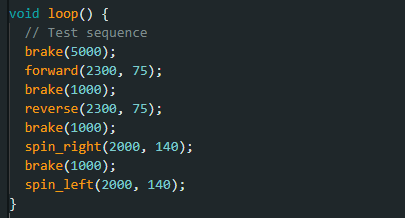

I then ran the following test sequence to ensure both motors were still working properly.

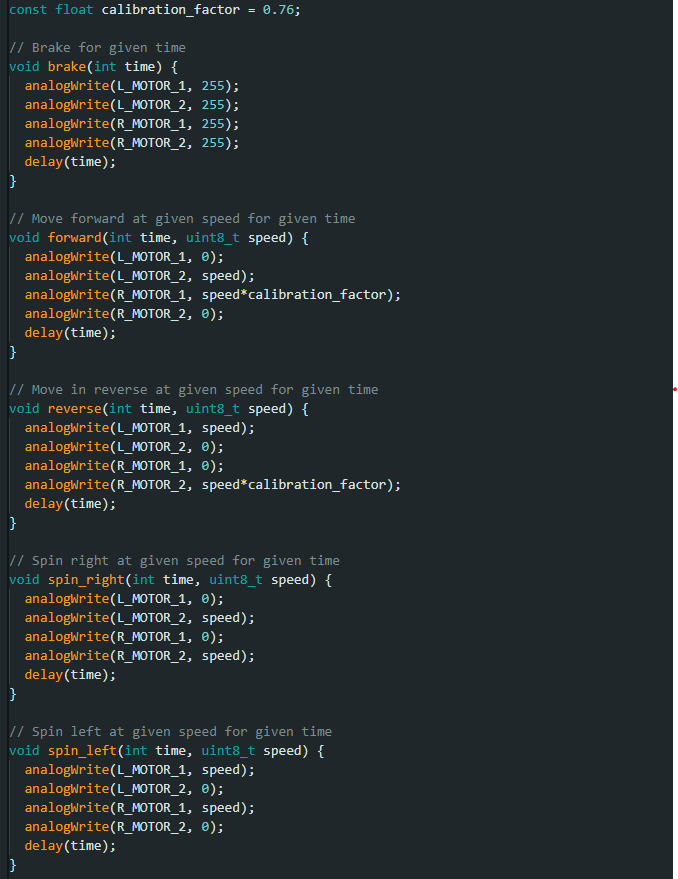

Functions for the test sequence below. Note that the calibration factor is included—see discussion below.

All wheels spinning in test sequence.

Test sequence on the ground (calibrated).

Next, I experimented to find the smallest duty cycle for which the robot is able to move. The lowest duty cycles I found with meaningful movement (see videos below) were 16.0% for forward/backward movement and 43.3% for spinning in place (40 and 110 out of 255 for analogWrite).

Forward/reverse at 16% duty cycle. Note that the reverse shown here is slightly slower. I tried turning the car around for the same test and the opposite results occured—turns out Phillips 239 has a slight incline.

Spin in place at 43.3% duty cycle

When driving straight forward, the car tended to veer to the left, indicating that the right wheels were spinning faster than the left. To fix this, I added a calibration factor between 0 and 1 to slow down the right motor to match the speed of the left motor. I found 0.76 to be the best value to get the car to drive straight. The fact that this is such a large damp in speed—along with a strange behavior I noticed where the left motor shows a large mechanical resistance at a certain angular position—leads me to suspect a mechanical issue with the left motor, wheels, or gears. The video below shows the car driving roughly straight for a little over 6ft.

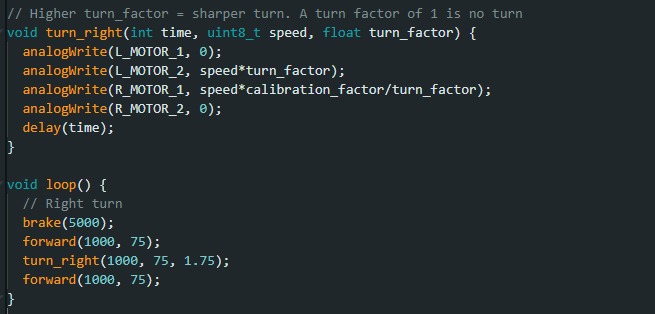

Finally, the video below shows the car performing a right turn.

Prelab

To start, I established a system for collecting data during PID control tests. I defined global arrays to log the time, distance to the wall, and duty cycle sent to the motor drivers. I then made a new command, START_PID, to be called by a Jupyter notebook to run the PID test, log the data, and send it to Jupyter.

LOG_SIZE is set to 1000, which is large enough that the arrays are never completely filled. Only the collected data is sent to Jupyter. The code to call this command and receive the data in Jupyter is shown below.

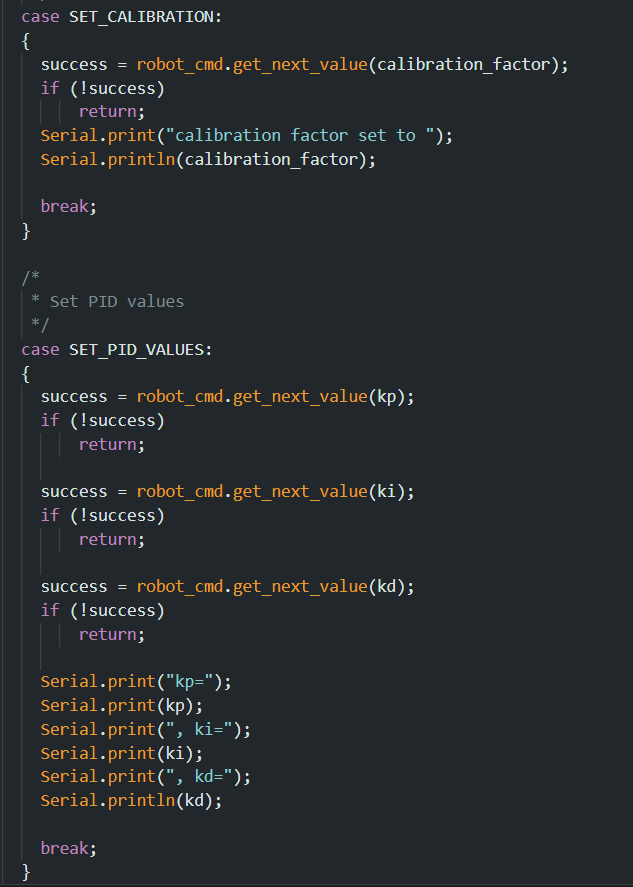

I also made commands to set the calibration factor and the PID constants from Jupyter to prevent having to reupload to the Artemis so often.

Arduino side

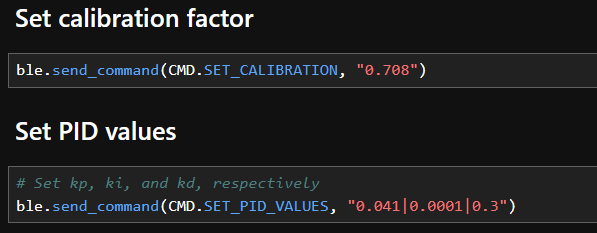

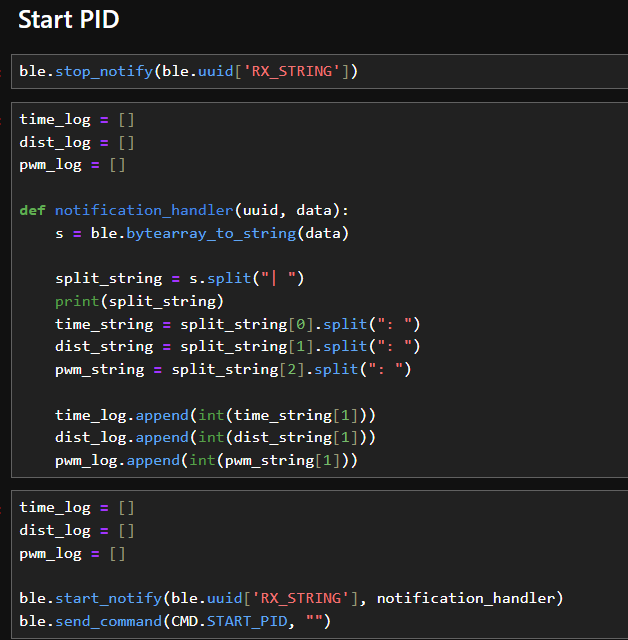

Python side with example values

I also copied over the required code from Lab 4 to run the motors, including the following helper functions and setup code.

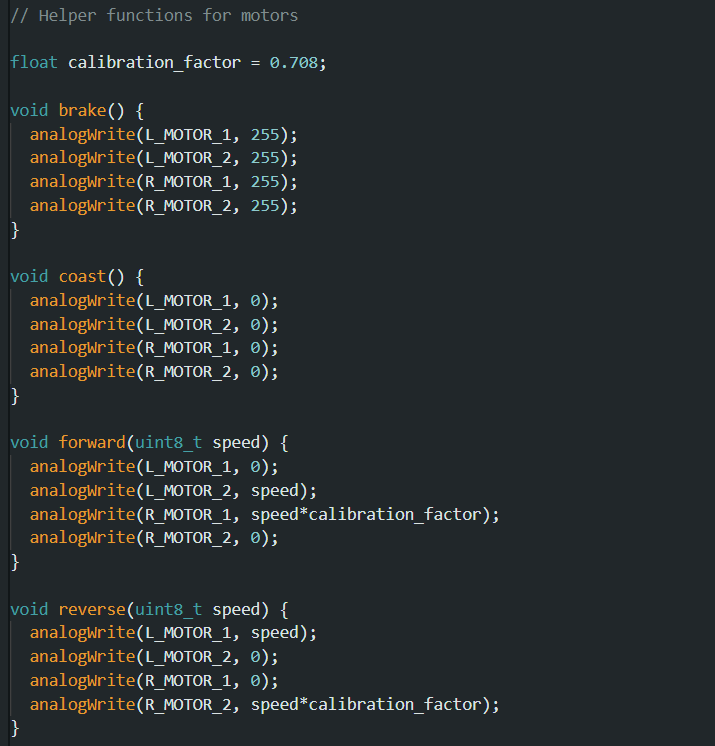

Helper functions for driving the motors

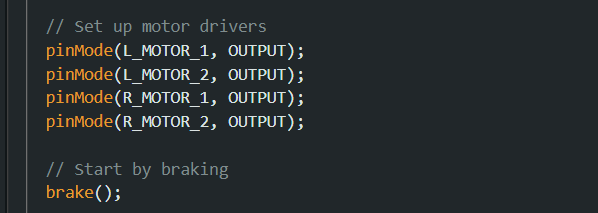

Code added to setup; I included a line to brake on setup to ensure the motors don't move immediately.

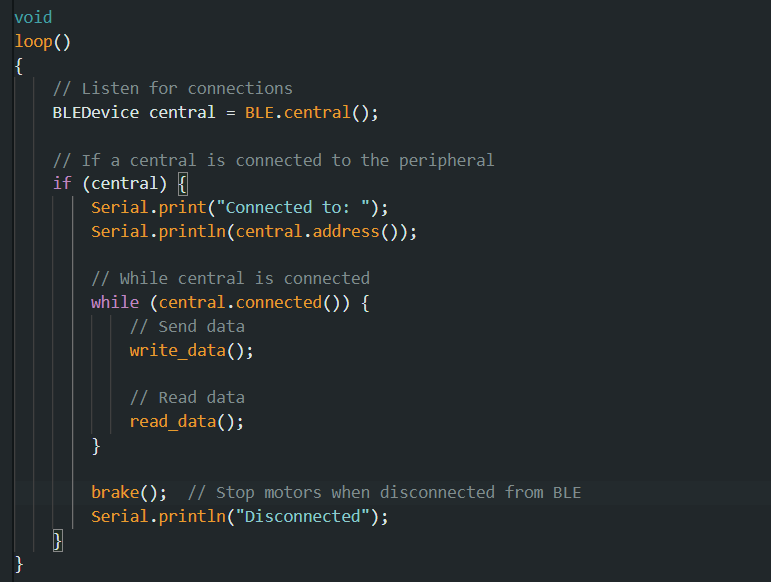

Finally, I added another call to brake() in the loop function to run after disconnecting from BLE. This way, the motors will automatically stop if the BLE connection is lost at any time.

Lab Tasks

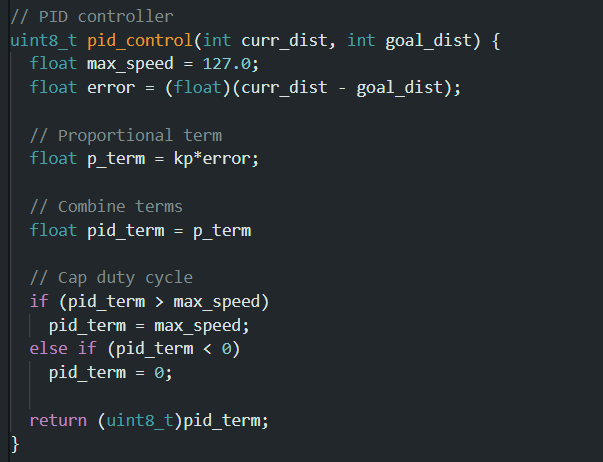

I started by implementing a P controller, which uses only a proportional term to calculate the duty cycle of the PWM output to the motors. I wrote the following function to be called from the START_PID command.

The function is called within the START_PID command as follows. The return value is the 0-255 duty cycle output to the motors.

To estimate a starting value for the proportional constant Kp, I reasoned that Kp is equal to the duty cycle output to the motors divided by the distance from the target at any time. The maximum output sent to the motors (127 for now) cooresponds to the maximum distance detectable by the ToF sensor (4000mm since I set the distance mode to long). So, Kp can be estimated as 127/(4000 - 304), which is approximately 0.035. Through experimentation, I optimized this to 0.041. The resultant P controller is demonstrated in the video below.

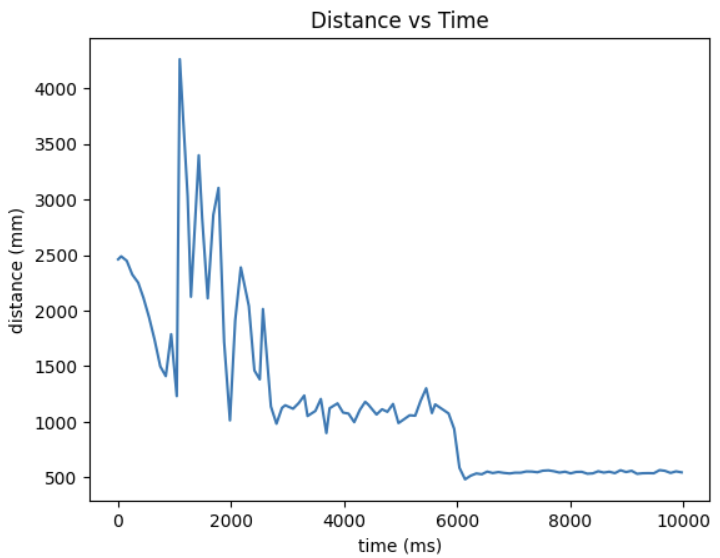

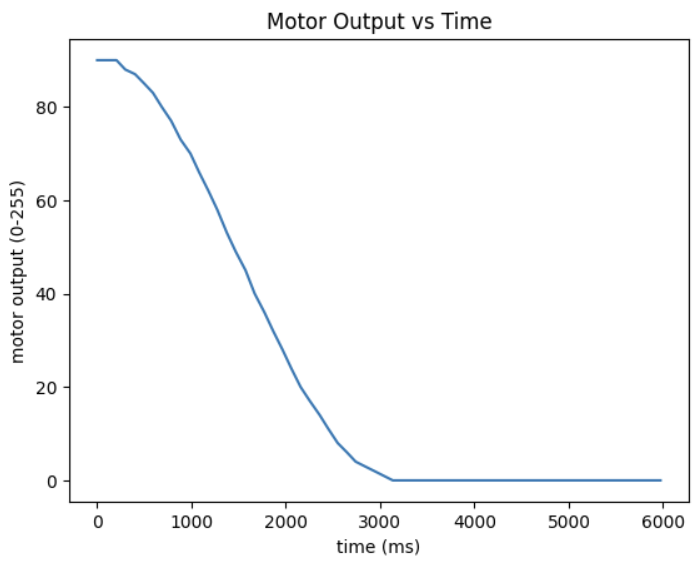

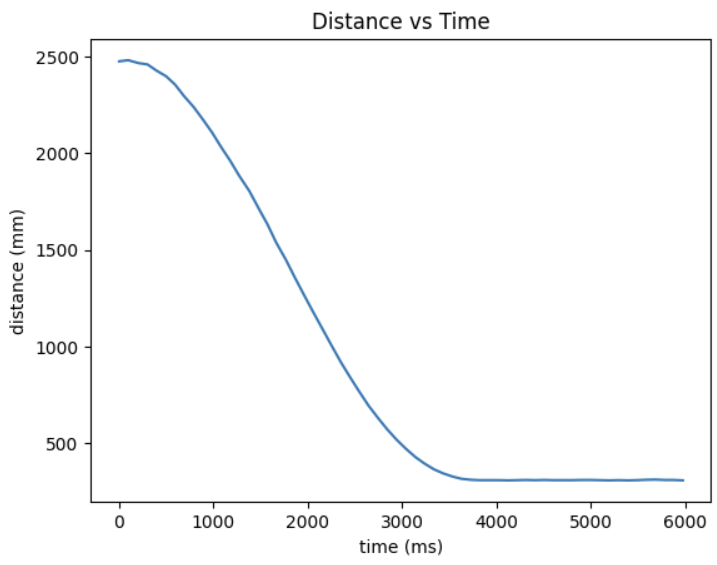

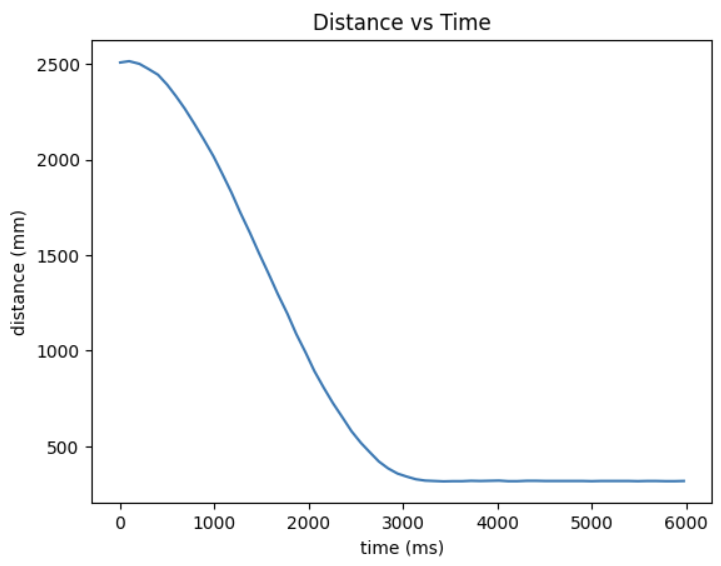

I plotted the distance and pwm output vs time in the plots below.

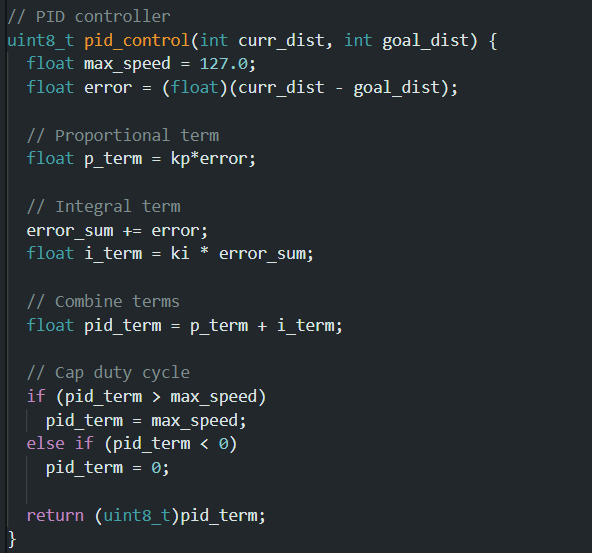

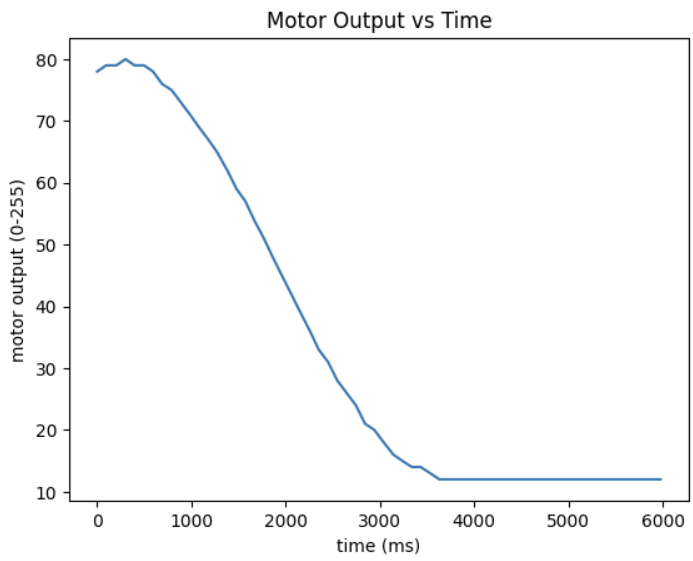

Next, I added an integral term to my controller. With this term, the car will quickly pick up speed proportional to an accumulated error over time. This way, if the car starts far away from the target, it will quickly "recognize" that it is not making much headway from the P term, and the I term will rapidly grow, causing the car to quickly pick up speed. The new controller function is shown below.

To tune the values of Kp and Ki, I followed a heuristic procedure as discussed in lecture. I started with Ki at 0 and slightly increased Kp until it overshot the target at Kp=0.044. I then cut this in half and steadily increased Ki until it slightly overshoots again. Then I cut this in half and steadily increased Kp until slight overshoot. I roughly iterated this process to experimentally find the values Kp = 0.036 and Ki = 0.0003 work the best for this PI controller. The results are shown in the video demonstration and plots below.

Given more time, there are two modifications I'd like to make to the controller. First is to add wind-up protection to the integral term. During tuning, I had to be very conservative with increasing Ki to prevent the I term from getting too high. Wind-up protection, which could be implemented by adding the following max_integral logic to the controller, prevents the I term from overshooting too much when the car arrives at the target.

Another modification I'd like to add is a derivative term to make it a PID controller. To do so, I would add a "sliding window" array to keep track of error values. The gradient between consecutive values gives the rate of change (derivative) of the error with time. This would allow the controller to predict when the error will reach 0 and preemptively adjust the motor output to prevent overshoot.

Prelab

Like in the previous lab, I started by establishing a system to collect log data and send it to Python for debugging and plotting. For this, I used the same system from the previous lab, replacing the distance log with a yaw log.

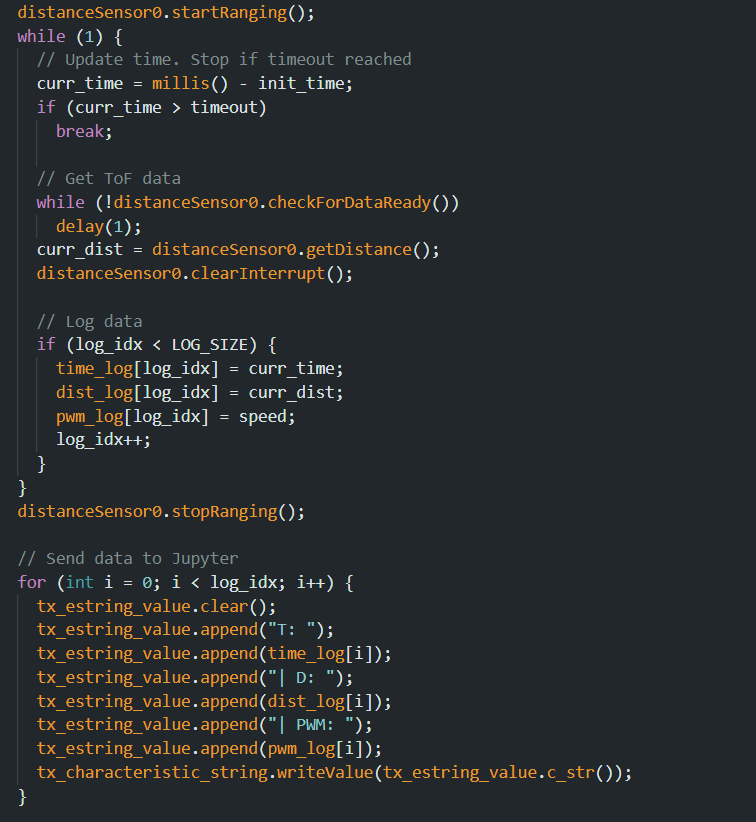

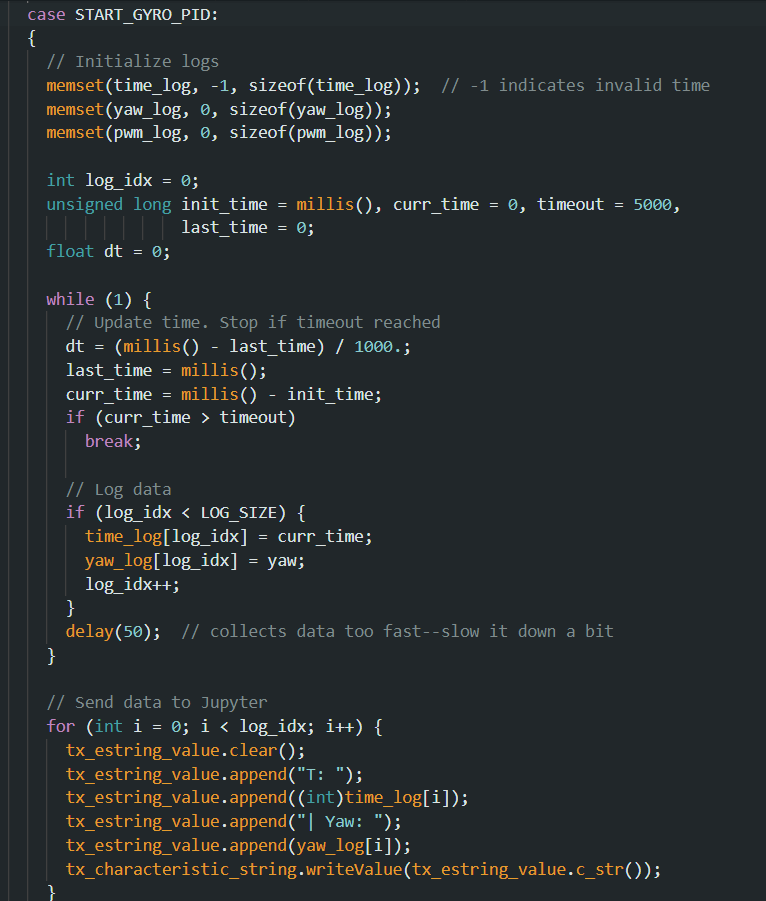

New Arduino command to start PID control and log data

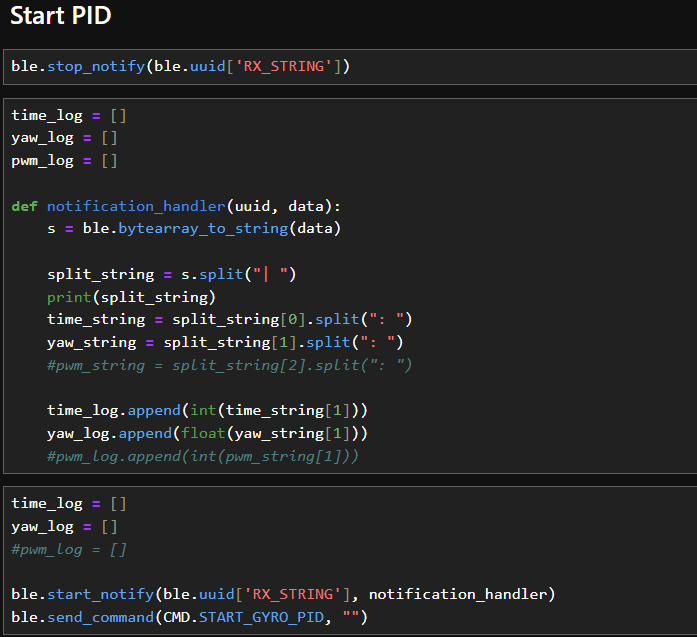

Python side

Lab Tasks

The first step was to establish a way to accurately obtain the yaw at any given time. Instead of simply gathering gyroscope data, I followed the tutorial provided for using the digital motion processing (DMP), which allows the accelerometer and gyroscope to be automatically calibrated to provide accurate roll, pitch, and yaw data. This is useful because it utilizes both the accelerometer and the gyroscope rather than one or the other, increasing the accuracy through sensor fusion. What's also useful about the DMP is that it automatically adjusts for the orientation of the IMU, so the IMU does not need to lay perfectly flat or be manually calibrated to provide accurate measurements.

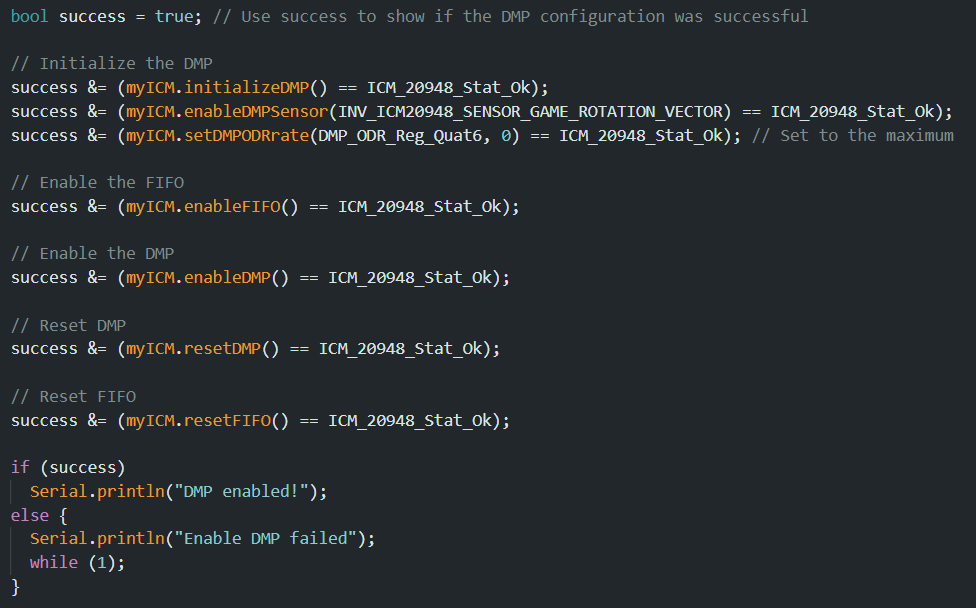

Code added to setup() to initialize the DMP.

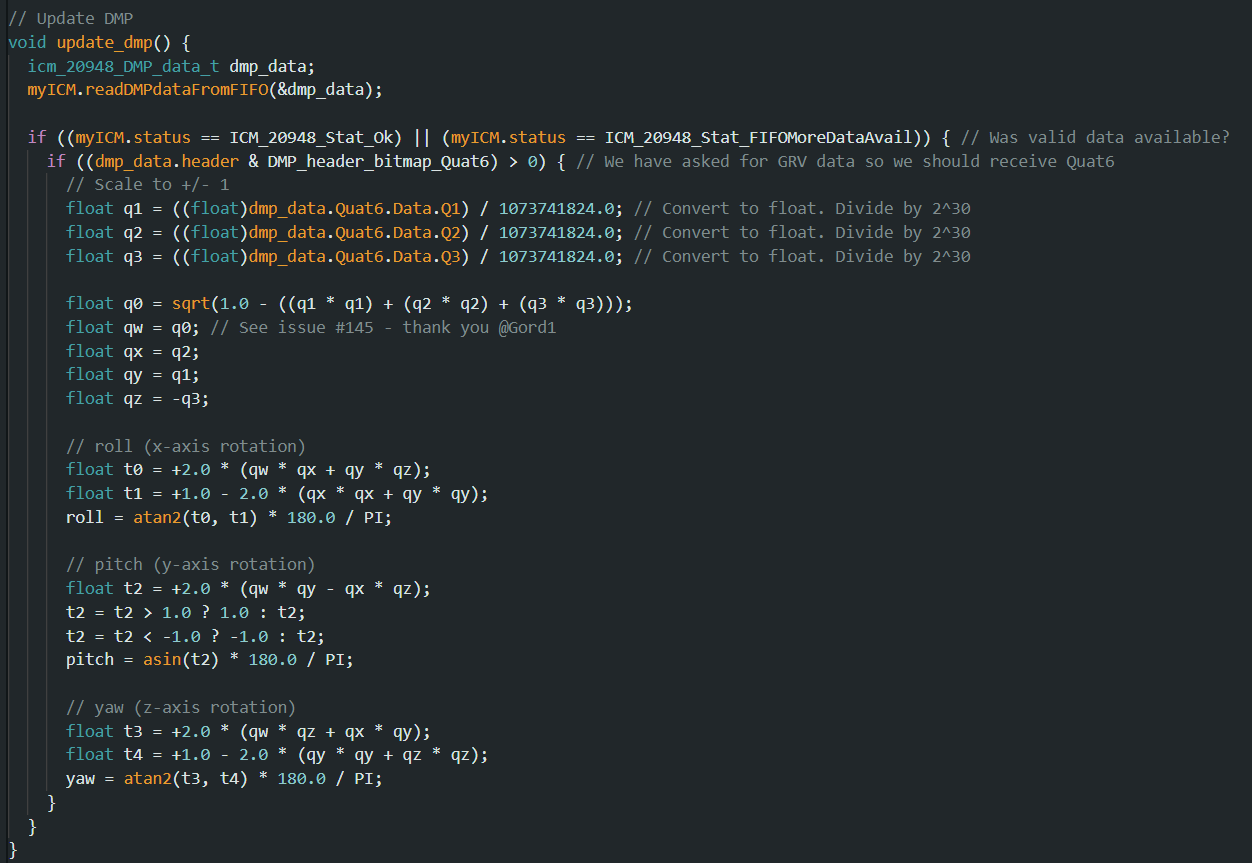

Helper function to update the roll, pitch, and yaw global variables.

Now that I can obtain the yaw at any given time, I implemented the P controller, largely copying what I did last time for the distance P controller. The primary modification I made was for the controller to return a float instead of a uint8_t, since the error can be negative. Since the yaw is measured in the range -180° to 180°, I also normalized the error so that if the yaw wraps around past 180 or -180, the speed is still properly calculated. The command then converts this to the appropriate PWM duty cycle and calls the appropriate function to spin the robot (spin_left() if the error is positive or spin_right() if the error is negative).

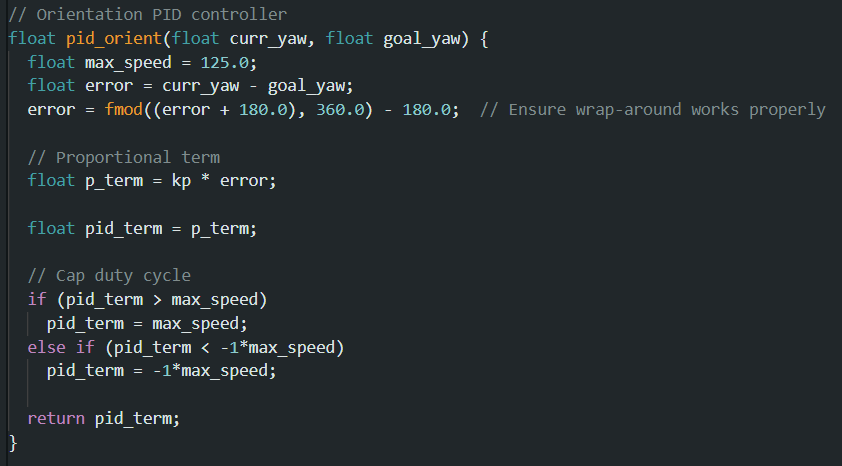

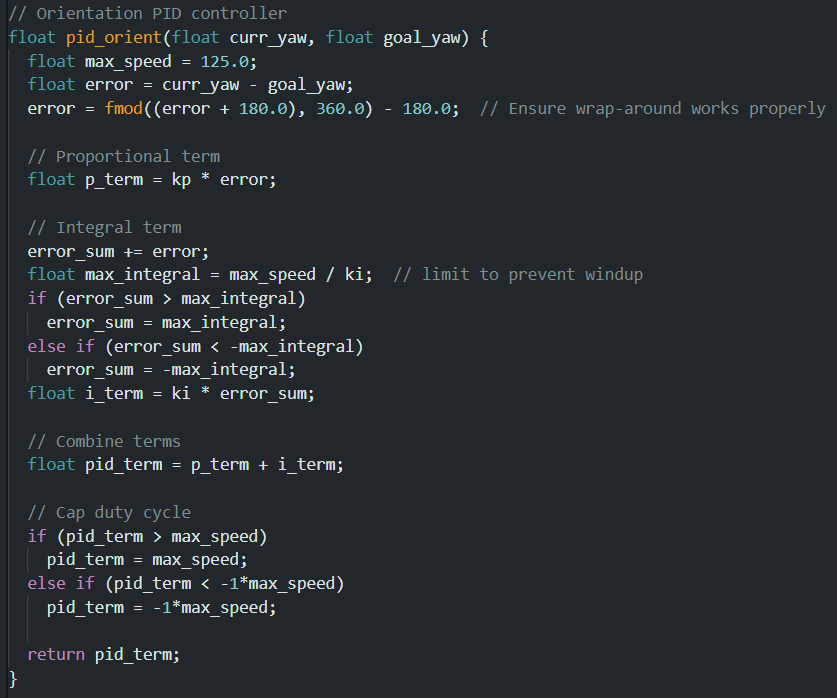

P controller function

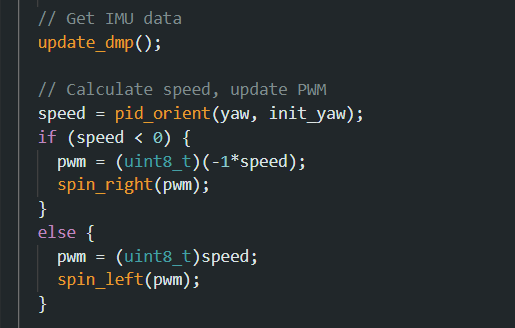

Updated command

To get an initial value for kp, I considered that it needs to be high enough that the motors spin relatively fast for any errors above ~20° or so. So, I started with kp = 3, which seems to be a good choice for the P controller.

Next, I modified the controller to include an integral term. Similar again to the previous lab, I added an error_sum variable which accumulates error over time.

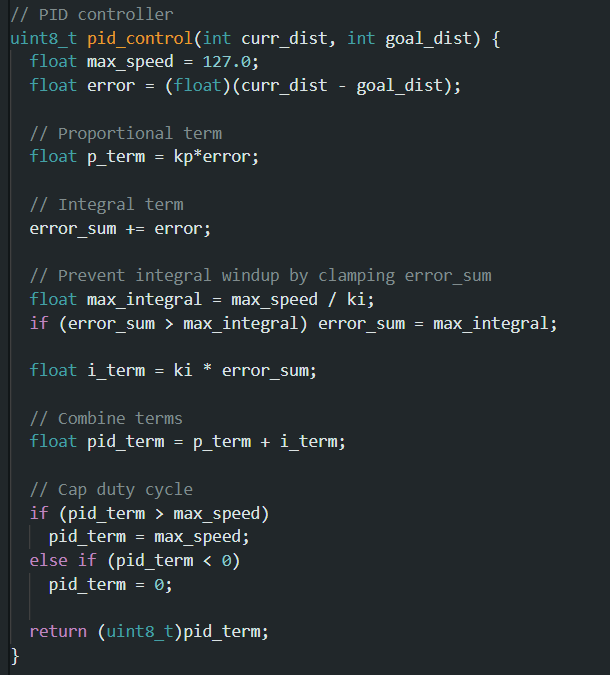

Modification to controller function

Estimate Drag and Momentum

To implement the Kalman Filter, I first needed to build a state space for the system. To do so, I first estimated the drag and momentum terms for the A and B matrices using a step response. I made a new command in the Arduino code to drive up to the wall at a set speed and brake when it gets close enough.

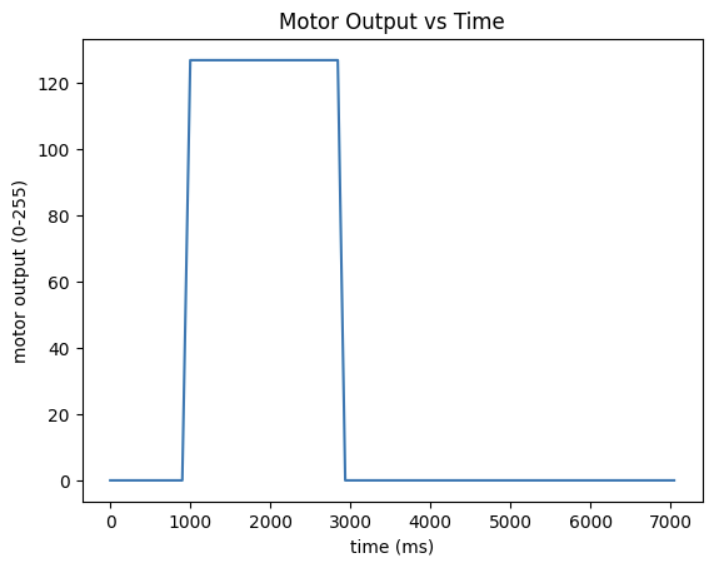

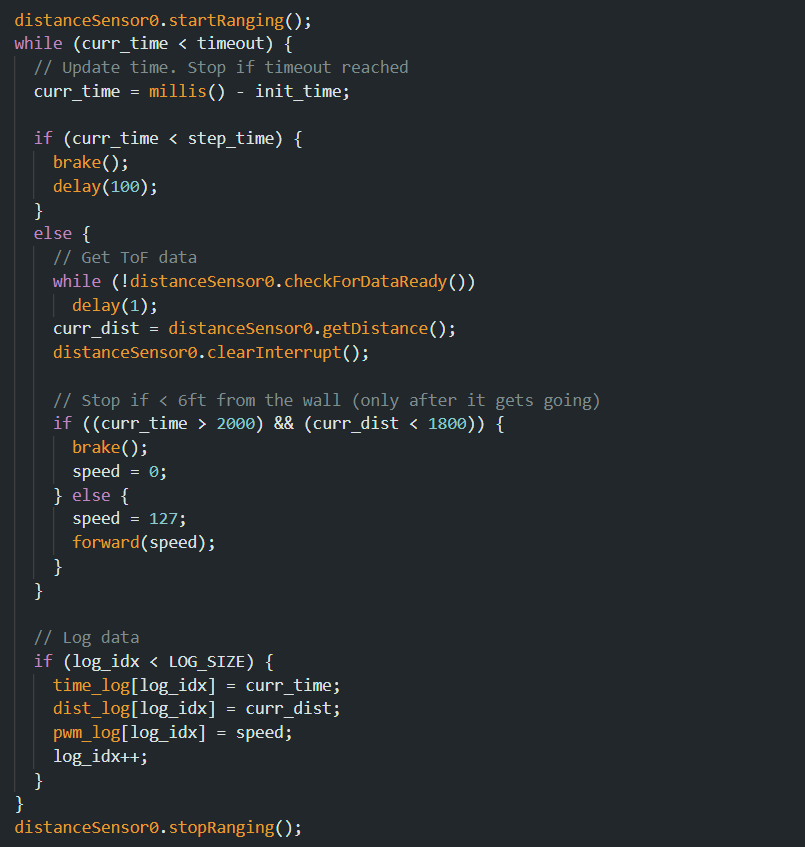

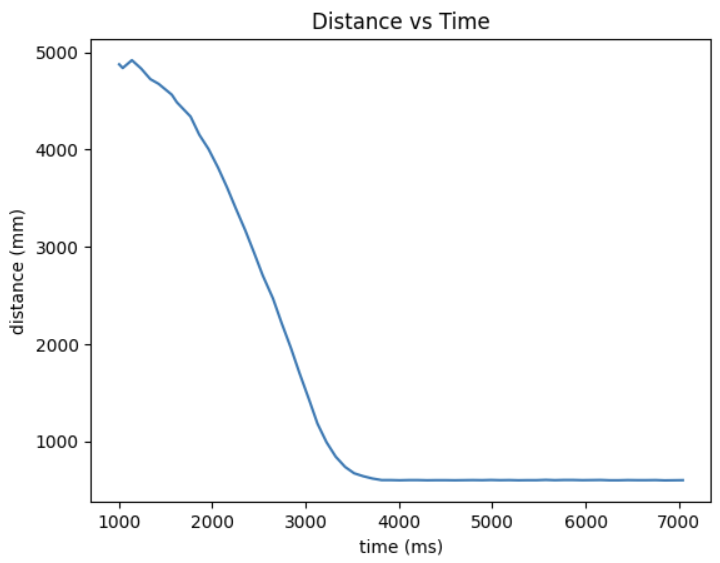

This is essentially the same as the command I used for the PID controller in Lab 5, but the PID control logic is replaced by logic to simply drive at 50% duty cycle (127 out of 255) until the robot is 6ft from the wall (I determined this distance experimentally to prevent it from crashing into the wall). Note I added logic so that the robot only brakes when the ToF sensor measures less than 6ft if it's been going for 2 seconds--this is because the robot starts slightly out of range, so the ToF sensors don't get valid readings until slightly after it has started moving. For the same reason, in the distance and speed plots below, I omitted the first several data points until the sensor is in range and measures valid distances. For the speed plot below, I also applied a low-pass filter to smooth the data, since the calculated speeds are rather spiky due to sensor noise from the motors, etc.

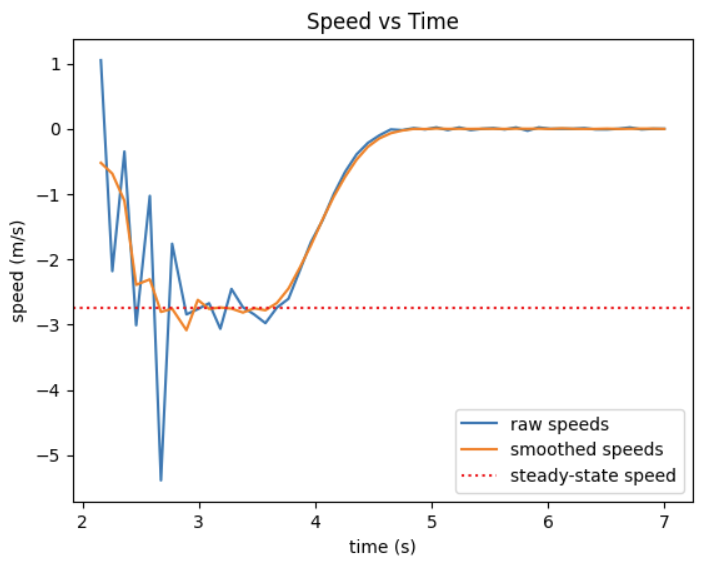

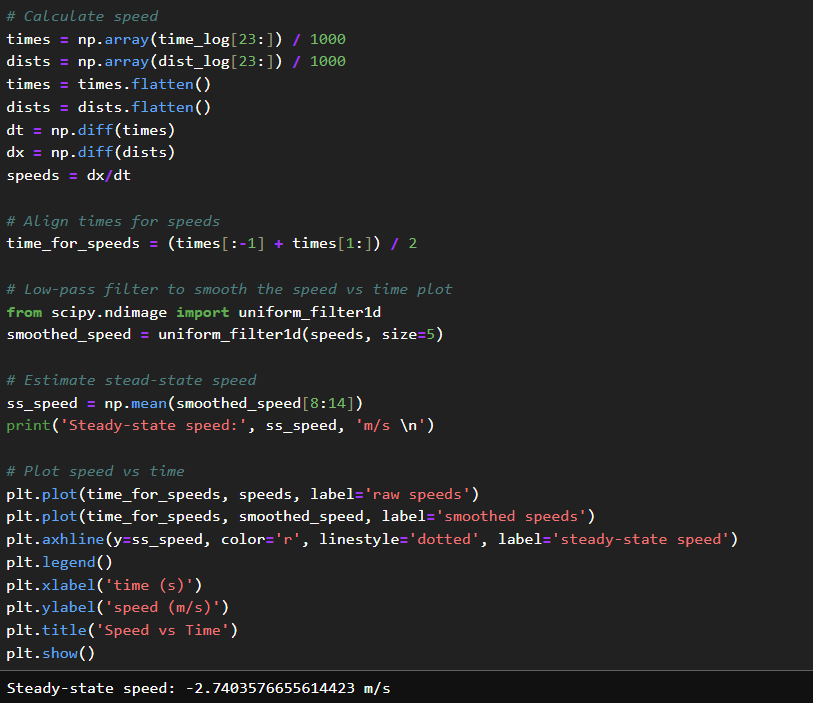

The speed of the robot appears to stabilize around 2.74 m/s (negative in the plot since it's moving toward the wall). To estimate the mass and drag coefficient, I then calculated the 90% rise time.

\( 0.9 \cdot 2.74 m/s = 2.466 m/s \)

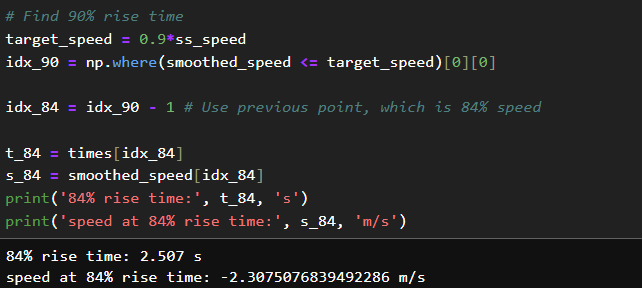

Since the first data point that exceeds this speed overshoots by quite a bit, I instead used the 84% rise time, which I computed as follows.

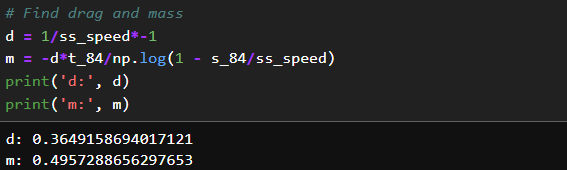

Finally, I estimated the drag coefficient and mass as follows. At the steady-state speed, acceleration is ~0. Taking \( u = 1 \) (since 127 PWM is our max acceleration),

\( 0 = \frac{u}{m} - \frac{d}{m} \cdot v_{ss} \)

\( d = \frac{u}{v_{ss}} = \frac{1}{2.74 m/s} \approx 0.365 \)

To estimate the mass, we use the exponential model of velocity for a first-order system:

\( v(t) = v_{ss} \cdot (1 - e^{-\frac{d}{m}t}) \)

\( \ln(1 - \frac{v(t)}{v_{ss}}) = -\frac{d}{m}t \)

\( m = \frac{ -d \cdot t }{ \ln(1 - v(t)/v_{ss}) } = \frac{ (-0.365)(2.507) }{ \ln(1 - 2.308/2.74) } \approx 0.496 \)

Kalman Filter in Python

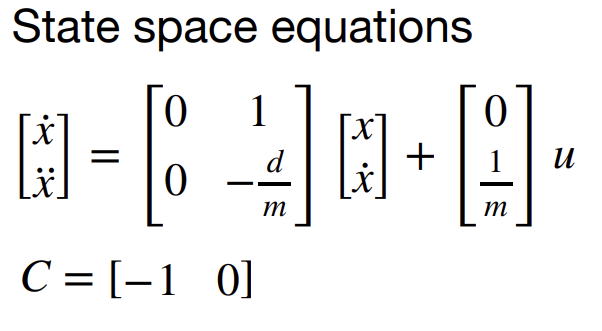

Now, we can compute the A and B matrices for the following state-space equations (credit: Fast Robots lecture notes).

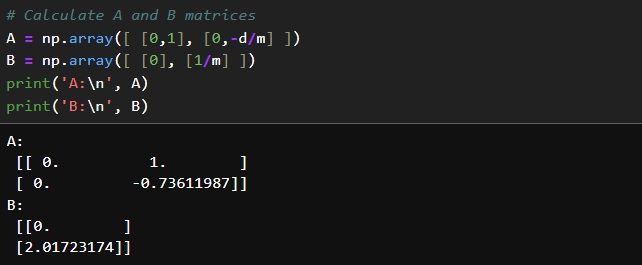

I used the following Python code to calculate the A and B matrices

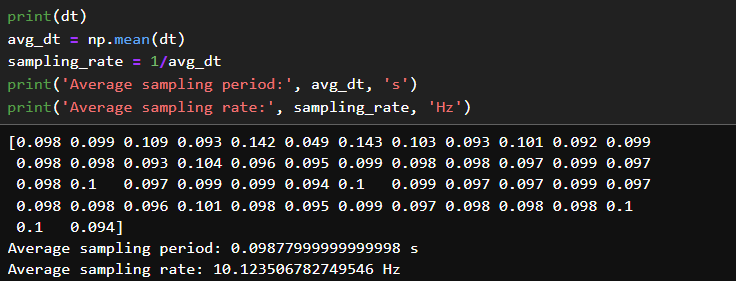

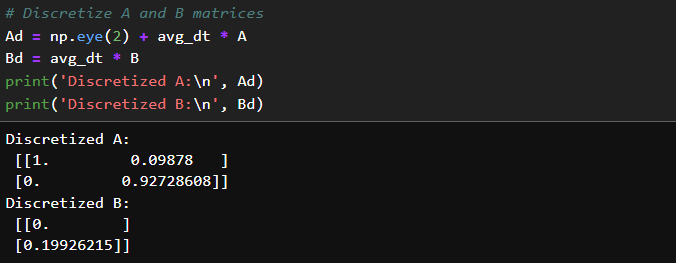

Next, I discretized the matrices. To do so, I needed the sampling rate of my setup. Since I already calculated the time differences while calculating the speeds above, I reused the dt array to find the sampling rate.

Though not perfectly consistent, my setup samples the data at about 10.12 Hz. I then discretized the A and B matrices as follows.

Since I flipped my speeds to be positive when calculating d and m above, I will use the following for my C matrix.

Next, I estimated the measurement and process noise. Since the datasheet for the ToF sensors lists the ranging error for long-range mode as 20mm, my measurement noise matrix is

\( \Sigma_z = \begin{bmatrix} (20mm)^2 \end{bmatrix} = \begin{bmatrix} 400mm \end{bmatrix} \).

Using the expressions used in lecture,

\( \sigma_x = \sqrt{10^2 \cdot \frac{1}{0.099}} \approx 31.78 mm \)

and

\( \sigma_{\dot{x}} = \sqrt{10^2 \cdot \frac{1}{0.099}} \approx 31.78 mm/s \),

where 0.099 is my sampling period in seconds. So, my process noise matrix is

\( \Sigma_u = \begin{bmatrix} (31.78mm)^2 & 0 \\ 0 & (31.78mm/s)^2 \end{bmatrix} = \begin{bmatrix} 1010mm & 0 \\ 0 & 1010mm/s \end{bmatrix} \)

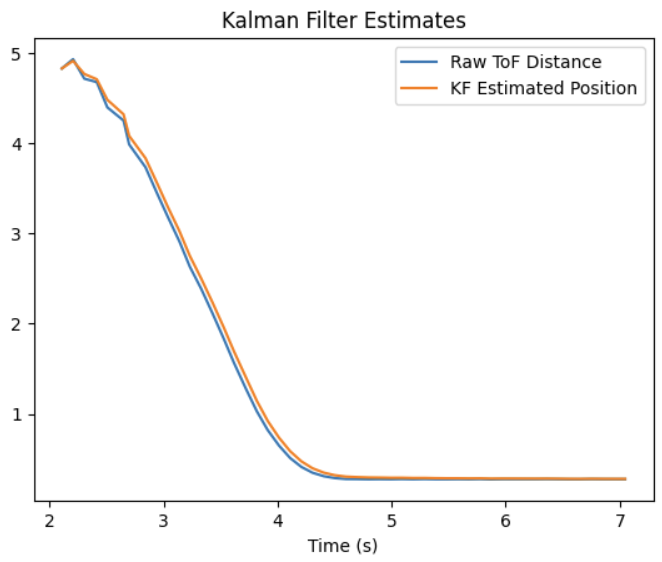

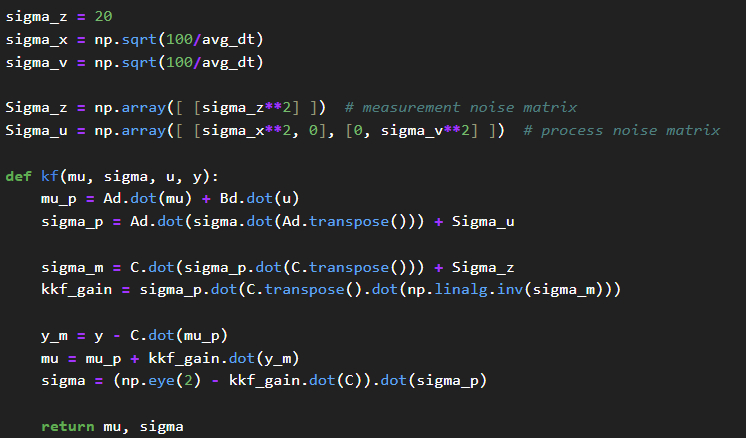

I defined these matrices in Python and defined my Kalman Filter as follows.

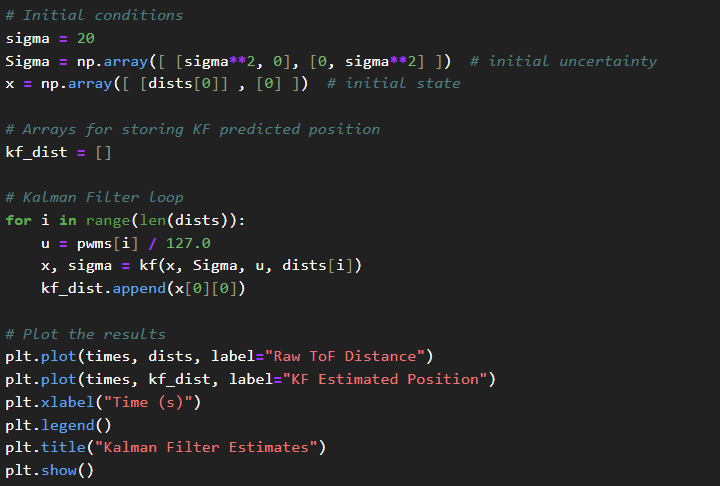

Finally, I defined the initial conditions for my KF loop. I decided to initialize the uncertainty in both position and speed to 20 mm, since this is the uncertainty in ToF measurements. Then, I ran the KF loop and plotted its predicted positions vs the measured positions in the same dataset as before.

Since this already appears very accurate, I did not adjust any parameters.

Kalman Filter on the Robot

Next, I implemented the KF on the robot to enable improved control with the PID controller. I added a new command START_PID_KF, which is mostly identical to my START_PID command from Lab 5, but after the PWM duty cycle is calculated by the pid_control() function, it is passed into a new function which predicts the new position and speed according to the Kalman Filter. This function is essentially the KF I implemented in Python translated to Arduino.

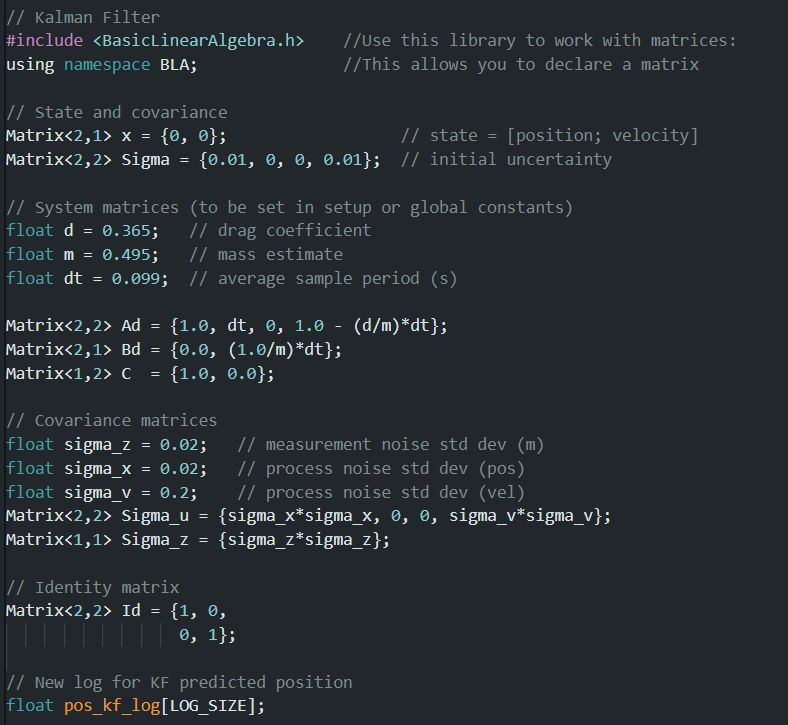

New global variables and include for matrix math

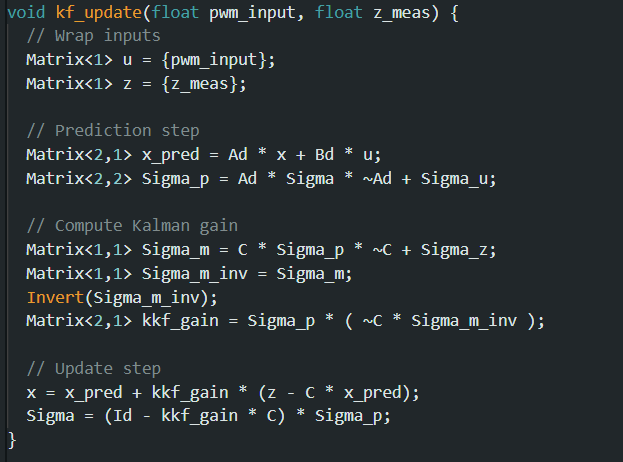

New function to run the KF in Arduino

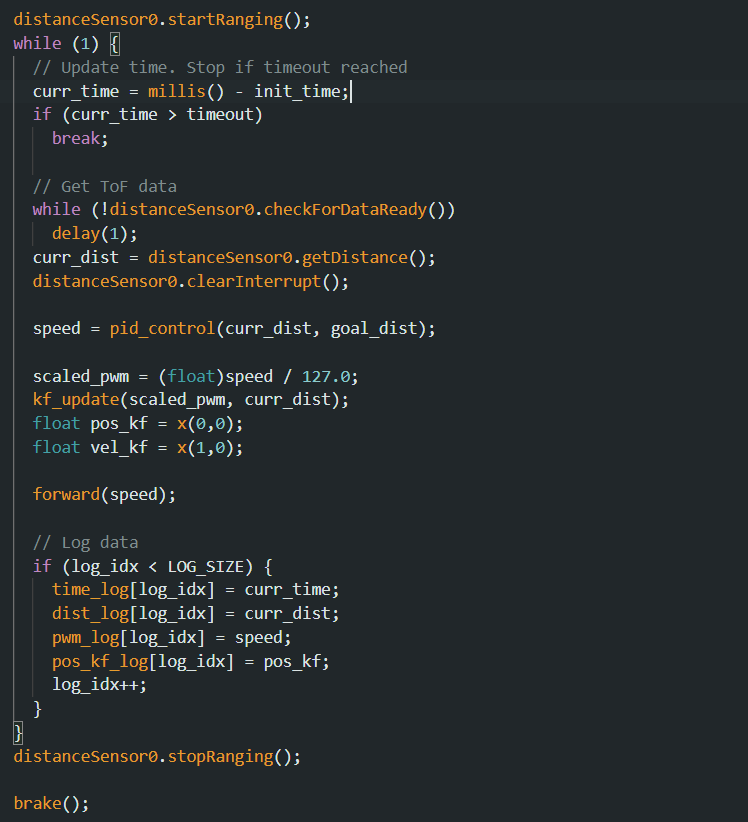

Updated loop for the command to run the PID and collect KF data

I then ran the PID controller (the PI controller from Lab 5, but I later added a D term) and plotted the KF predicted positions against the measured positions over time. Note that the KF is not affecting the controller yet—I'm just plotting the output of the KF to ensure it's working as it was in the Python implementation.

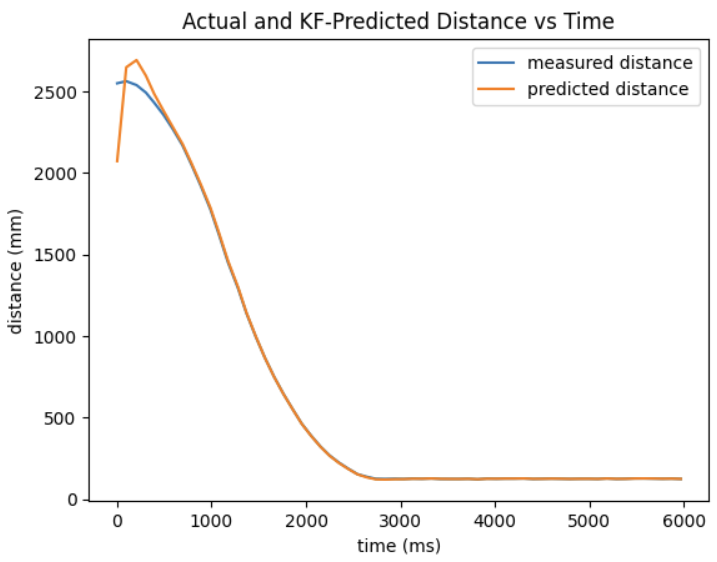

Aside from the deviation at the beginning, the KF-predicted position vs time aligns very closely with the measured distance, so the Kalman Filter implemented in Arduino is working very well.

Finally, I inegrated the Kalman Filter into the PID controller. To do so, I simply switched the way controller measures the current distance to be the KF-predicted distance. To make the D term more stable, I also switched the way it is calculated to use the KF-predicted velocity, rather than differentiating the errors over time, since this is less noisy. I also made some minor tweaks to the way the duty cycle is calculated and output to the motors—now, if the calculated duty cycle is negative, the robot reverses at the calculated speed, rather than coasting. Also, if the magnitude of the duty cycle is less than a minimum value (35), it brakes, since anything in that range is too small to move the robot anyway—this was just to eliminate the hum of the motors trying to spin when the duty cycle was too low. After tuning the PID coefficients using a similar heuristic method to the lecture notes, the robot drive up to the wall much faster than before and stop at the right distance without overshooting or oscillating.

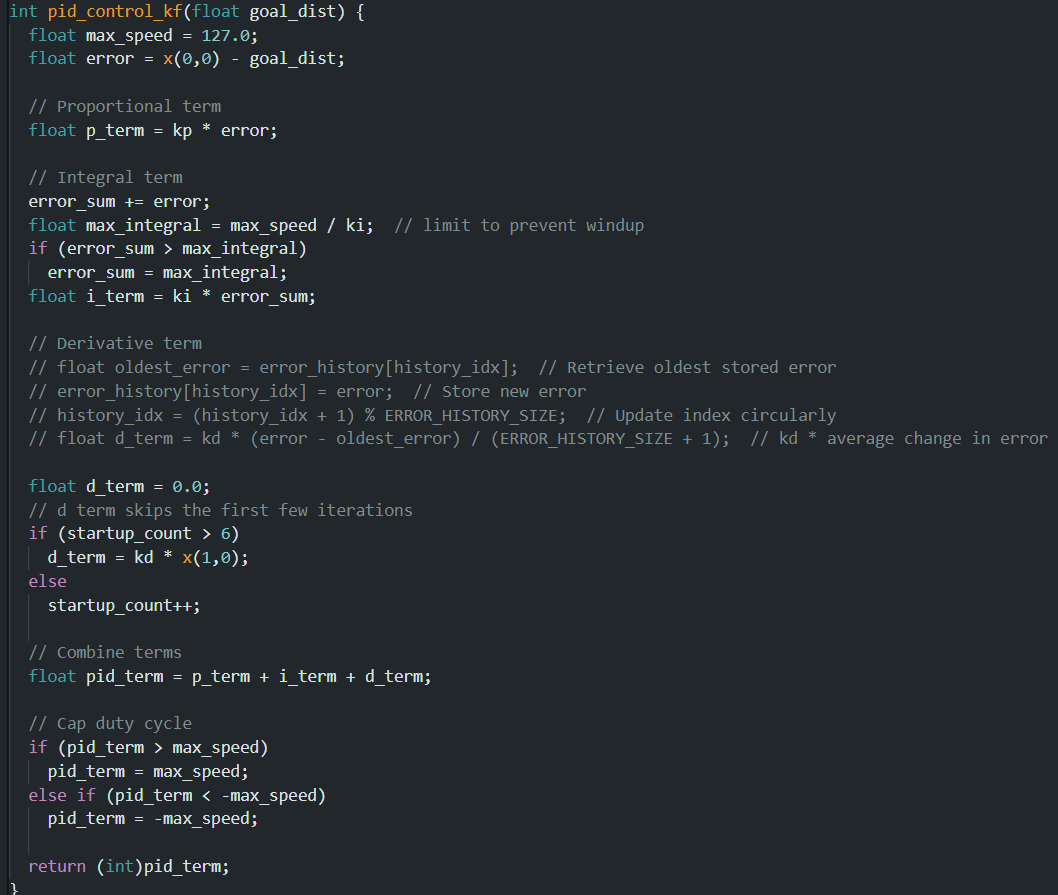

Updated PID controller

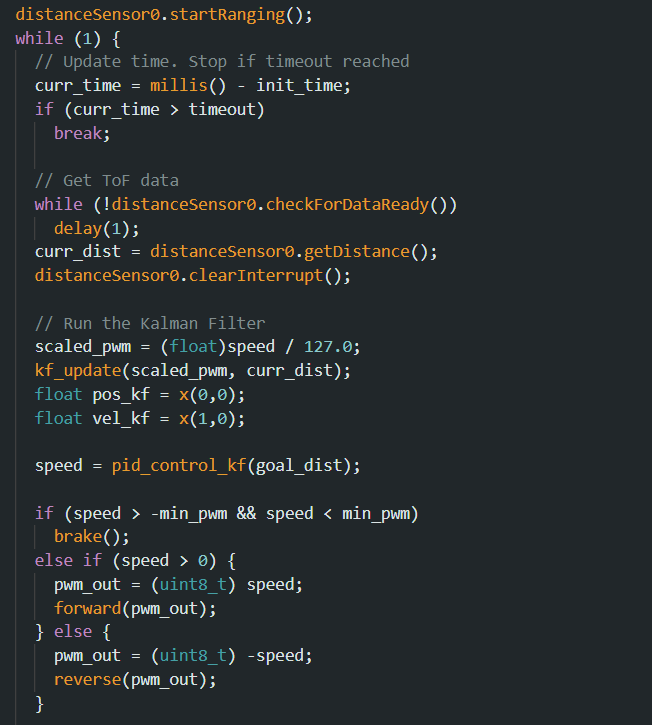

Updated control loop

Drift

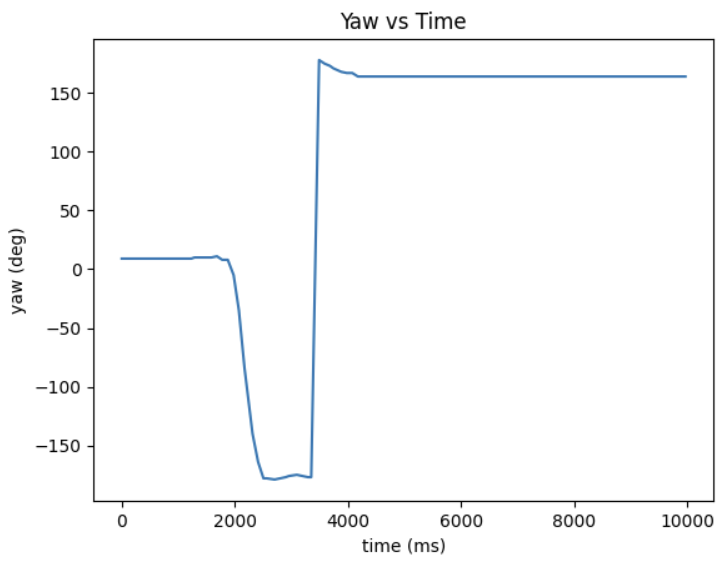

To perform this stunt, I added a new command, DRIFT, to the Arduino file. When executed, this command first computes the initial yaw and stores this for later. It then goes through a sequence of three "modes" to perform the drift. The first is to drive up to the wall at max speed until it is close enough. The second is to execute the PID controller on orientation from Lab 6, setting the target yaw to the initial yaw + 180°. I experimented with the P, I, and D terms, and found that the robot performs a clean drift-turn at this speed with values of 0.4, 0.001, and 10, respectively. Finally, after finishing the drift, the final step is to return to the starting line at max speed and then stop.

I considered adding logic to the drift stage to check the yaw in each iteration and use this to decide when to stop drifting and start returning to the starting line, but I instead decided to use open-loop control—I.e., manually deciding when to transition from the drift stage to the return stage. I accomplished this by storing a timestamp of when the robot starts drifting and then setting it to stop drifting a set time after that. I tuned this value experimentally (with another command I added to set the drift time from Jupyter) to determine that the robot reaches the desired orientation after drifting for 200ms.

A problem I ran into with the transition between drifting and returning to the starting line was, if the robot tries to accelerate at max speed just as it reaches the right orientation, before it has had a chance to stop and gain traction, it continues drifting and often does donuts in place, rather than driving straight to the starting line. To fix this, I simply added an extra step to the beginning of the return stage to have the robot momentarily brake to stabilize and regain traction before continuing to drive forward. I again tuned the span of time the robot needs to brake here to find the minimum time needed to stabilize.

Finally, with the robot able to drift-stop to the correct yaw and brake for just the right amount of time to regain traction, it simply drives forward at max speed after stabilizing until it passes the starting line. Again, I tuned the span of time needed to pass the starting line to determine when the robot should brake to ensure it crosses. The full command is shown below, followed by my updated orientation PID controller.

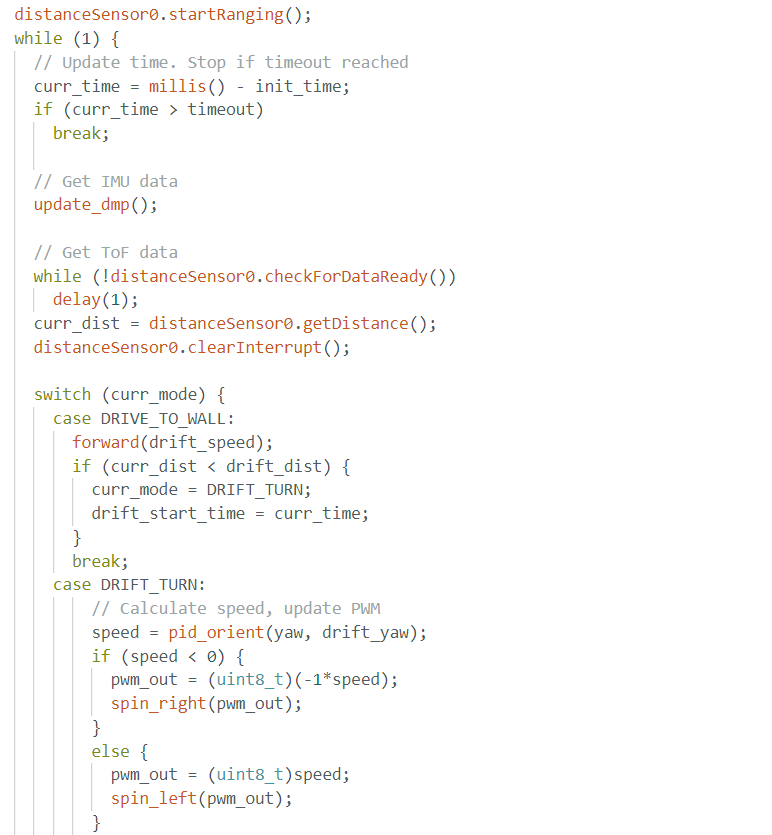

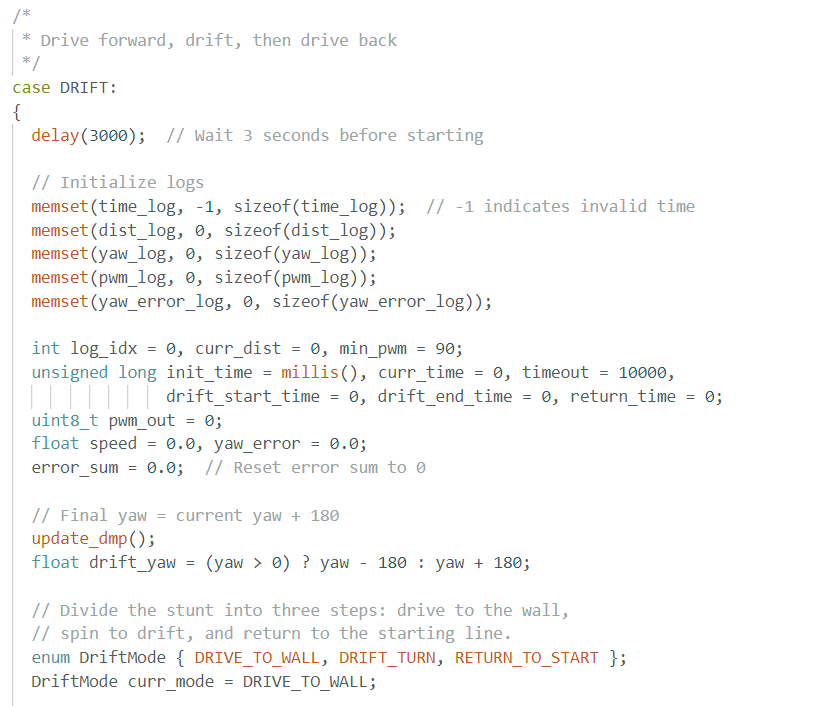

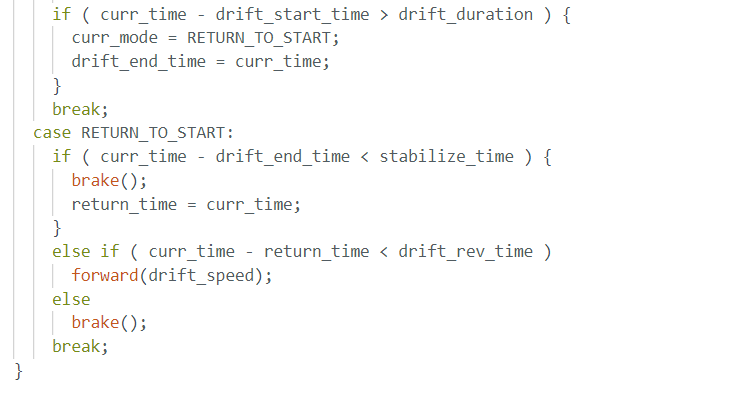

Drift command

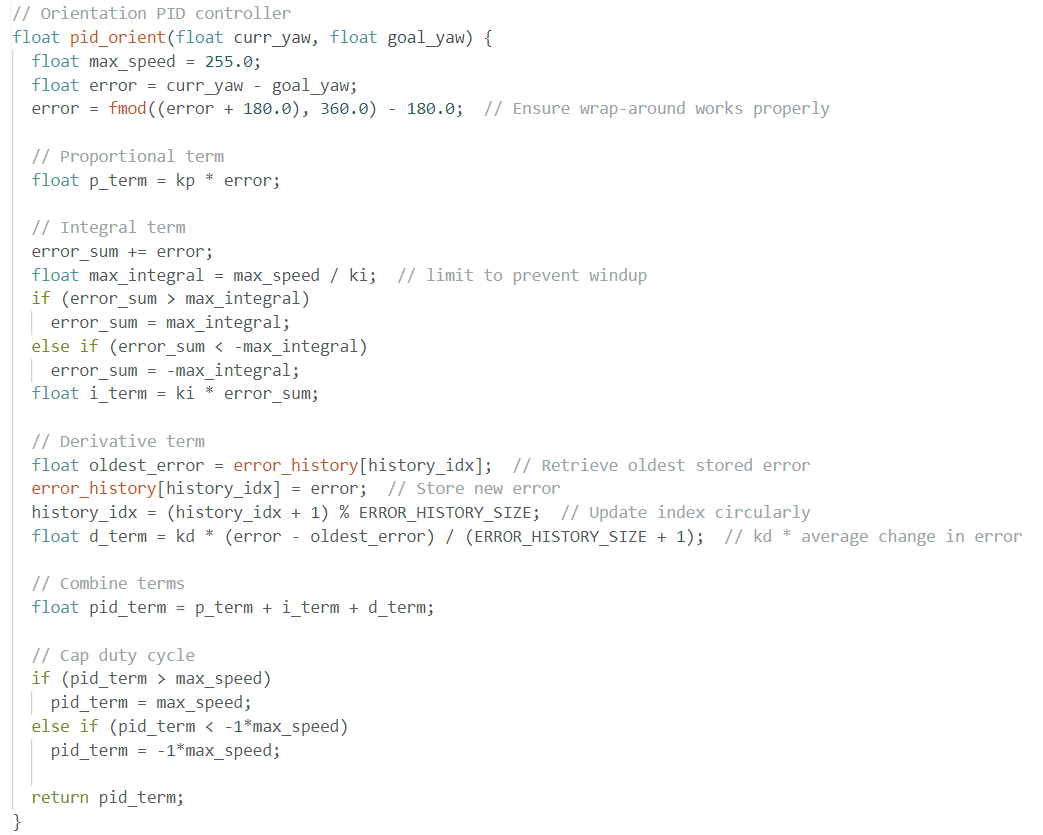

Updated PID controller for setting yaw

Control

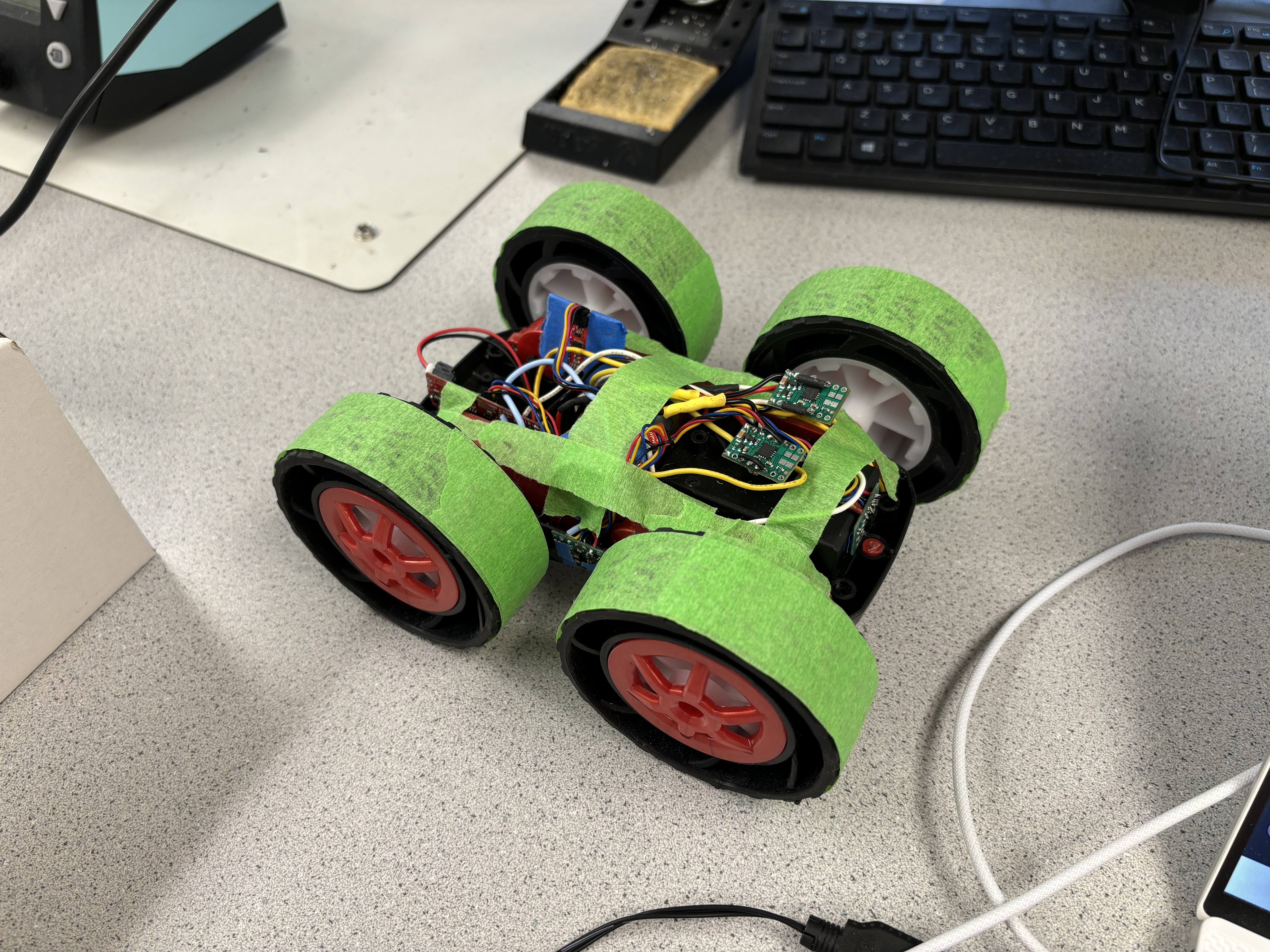

The first step was to get the robot to spin in a circle at small increments. To do so, I reused my orientation PID controller from Lab 6. Since this controller struggles to turn the robot over small angle differences, I preemptively wrapped the tires with tape—the non-sticky side of the tape has low friction with the floor compared to the tires, allowing the robot to start moving from rest more easily. The tradeoff with this lower traction is that the robot will be harder to control when it's already moving, primarily in its ability to brake and turn at higher speeds.

With this change to my robot, I then revisited what minimum PWM output is required to spin the robot in place. I made a couple new commands for basic movement—DRIVE_FORWARD, SPIN_LEFT, and SPIN_RIGHT—which take as parameters the speed and time to move. Using the latter two, I experimentally determined that the minimum PWM output required to get the robot moving for an in-place spin is 90. Though this is only a slight decrease from the old value of 110, if I spin the robot with 110 PWM now, it spins much faster than it used to. Thus, the addition of tape to the tires appears to provide a fairly significant increase in precise orientation control.

New minimum PWM of 90

Old minimum PWM of 110 with new configuration

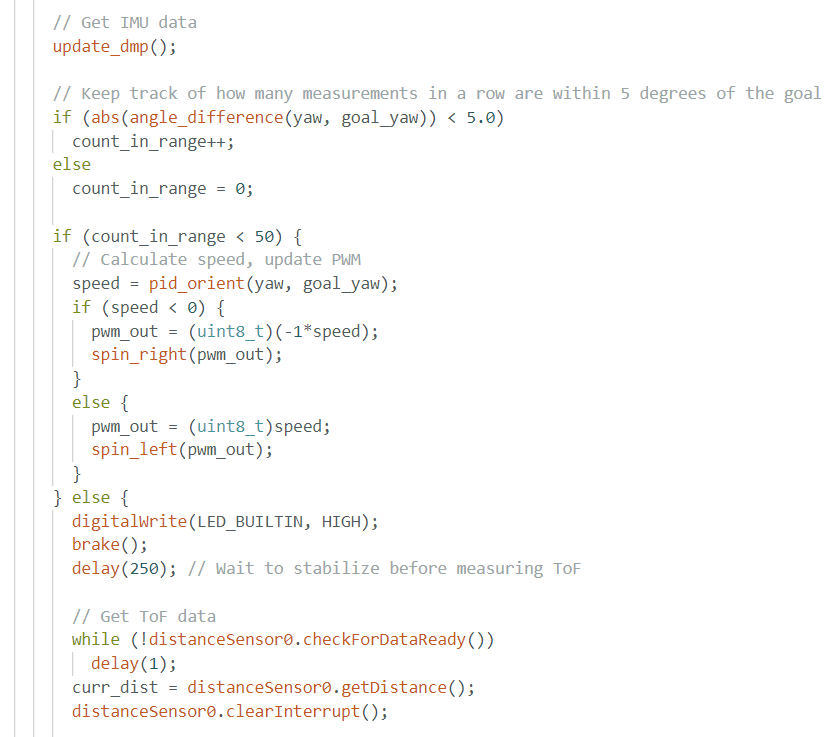

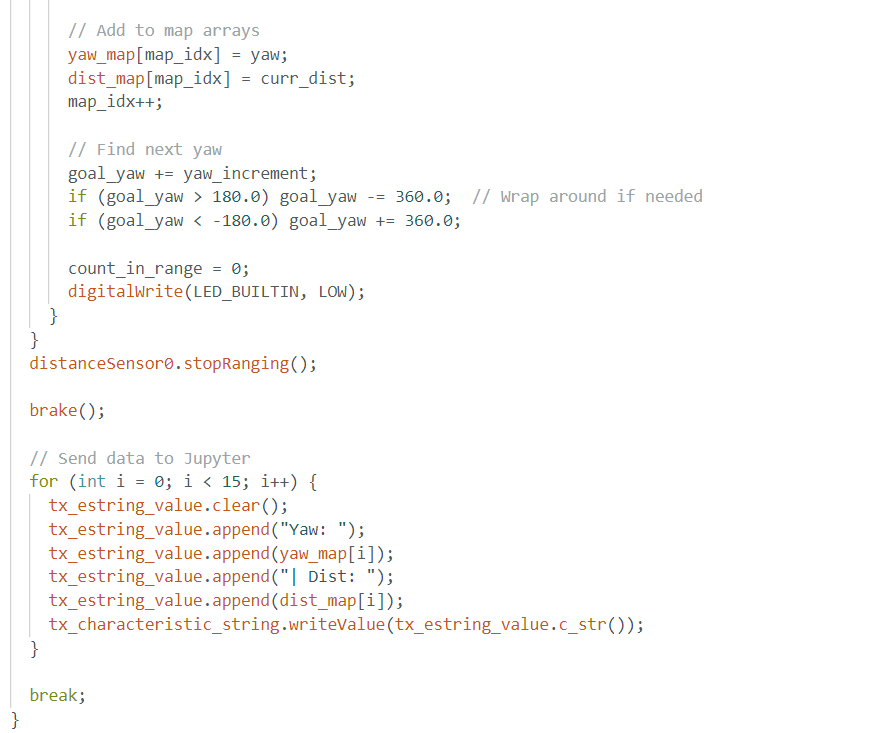

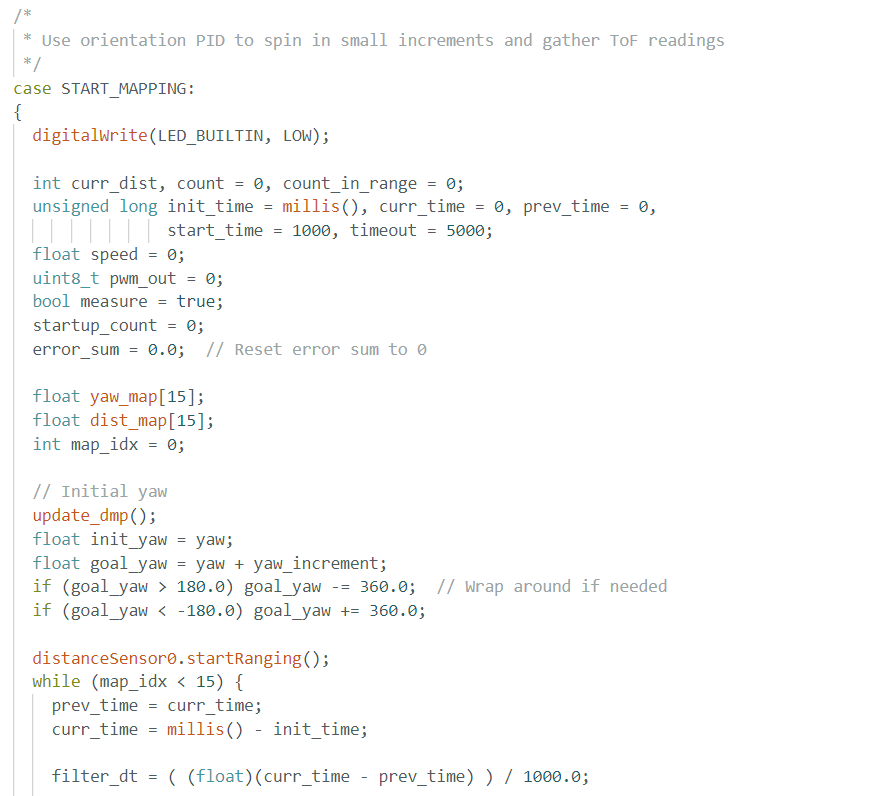

I then made a new command, START_MAPPING, to spin the robot in small increments and read ToF data. To start, I made it just spin for one increment, re-tuning my PID values until the robot could consistently make the 24-degree turn and stop in the right place. A good set of values I found was kp = 1.9, ki = 0.033, and kd = 0.8. A larger-than-usual I term proved very useful for accuracy, since any combination of the P and D terms alone tended to overshoot or undershoot the target yaw by a significant amount.

With the robot able to consistently make a 24-degree in-place turn, I configured it to make 15 such turns in a row, finishing at its initial orientation. To do so, I added logic to detect when one turn was completed: a counter variable keeps track of how many measurements in a row are within a narrow range (I chose 5°) of the target angle. When enough (50, since the loop runs very fast) measurements in a row are within this range, the robot decides that the turn is complete. It then measures the ToF data (after braking briefly to stabilize for accurate ToF measurements), stores the current yaw and ToF reading in arrays, and calculates the next yaw to turn to. The code below shows the full START_MAPPING command.

Example mapping outside Phillips 238

Processing the Data

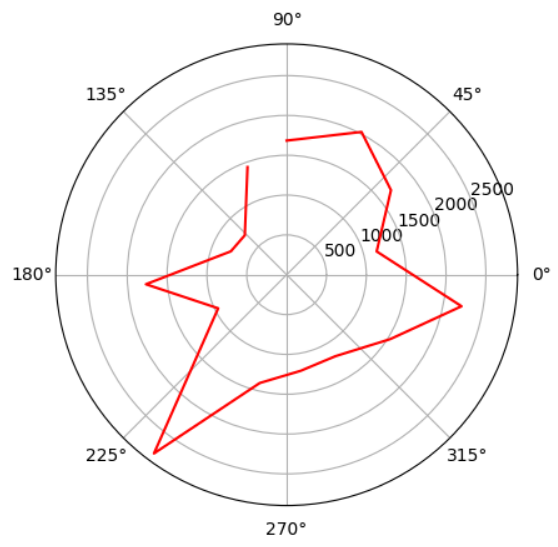

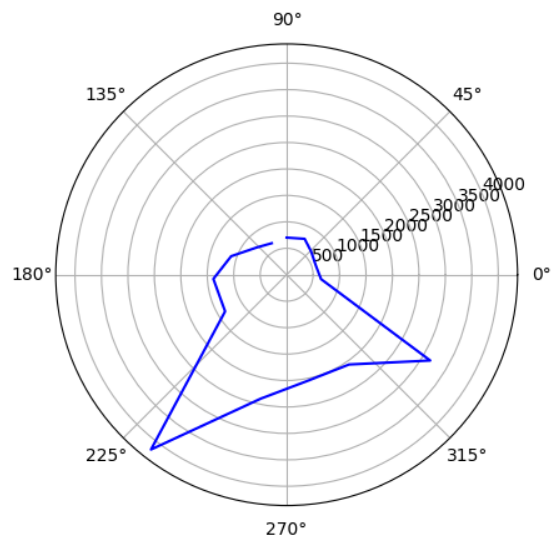

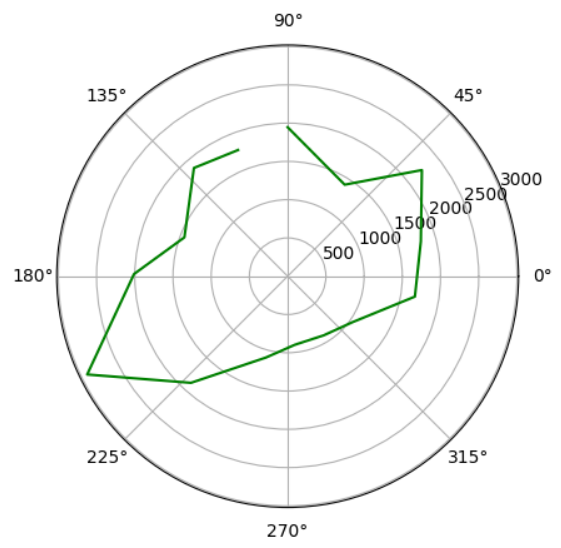

With the yaw and distance measurements, we can map out the walls around the area. I defined the wall on the left (when facing the door) as the y-axis (x = 0) and the wall opposite the door as the x-axis (y = 0). Thus, the position of the robot in the video above is (2,7), measuring x and y in feet (each floor tile is 1x1 ft). I repeated the scan I did in the video above for two more points: (5,4) and (3,3). To visualize the results of each scan, I plotted the data from each scan in a polar plot and in a Cartesian plane in the global frame. To plot the latter, I applied the T-matrix:

\( T = \begin{bmatrix} cos(\theta) & -sin(\theta) & x_r \\ sin(\theta) & cos(\theta) & y_r \\ 0 & 0 & 1 \end{bmatrix} \)

Where θ is the robot's orientation in the global frame (relative to the x-axis) and (x_r, y_r) is the robot's position in the global frame. The results of the three scans are shown in the polar and Cartesian plots below.

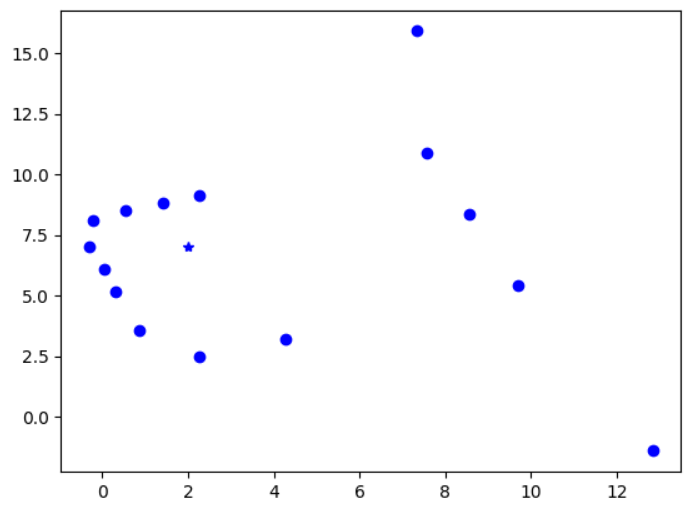

First scan at (2,7)

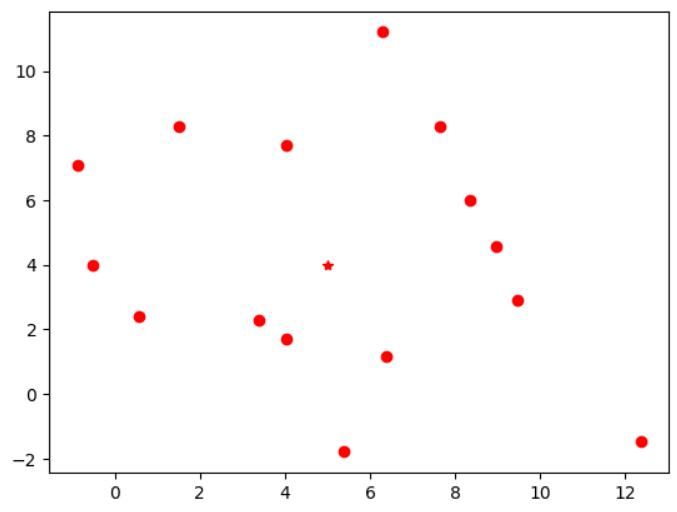

First scan at (5,4)

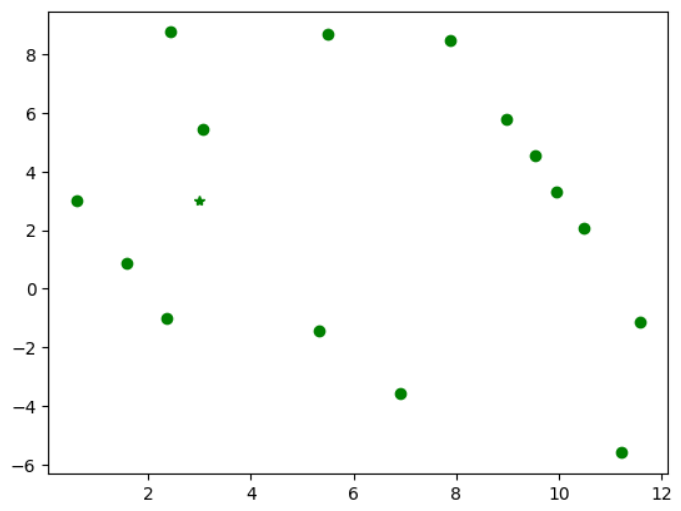

First scan at (3,3)

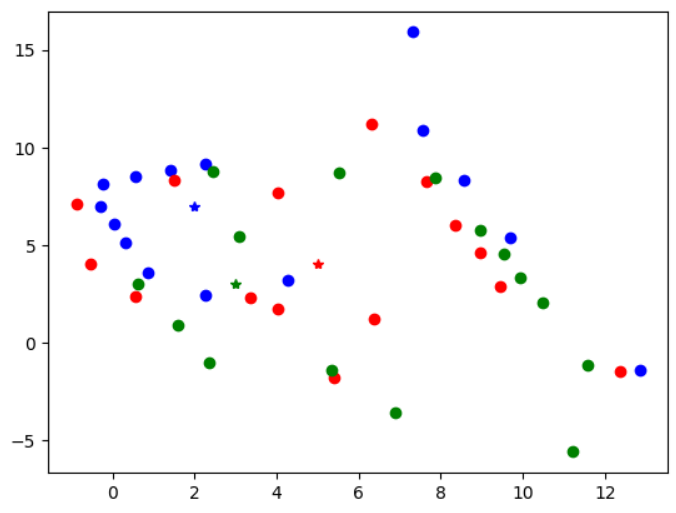

Merged Cartesian plot

The final map of the area, shown in the last Cartesian plot above, is quite messy, but provides a decent map of the door, and surrounding walls. It should be noted that many points around the bottom-left and bottom-right of the image should be ignored, since these are measurements where the sensor did not see any walls because the scans were done in a hallway. The map could likely be improved by performing more scans at different locations. It could also likely be improved by taking multiple ToF readings at each incremental angle and averaging them, rather than just taking one, since individual ToF readings can be inaccurate due to noise, interference, etc.

Localization in Simulation

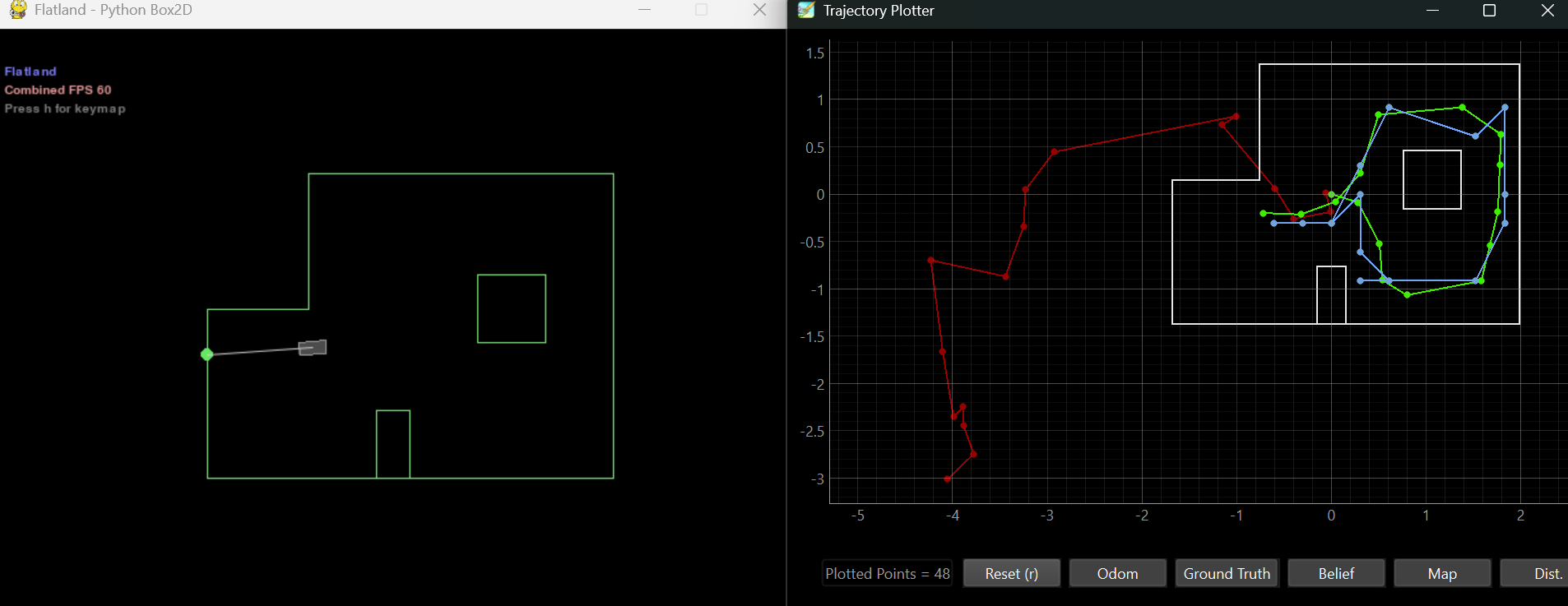

After setting up the base code, I ensured it was set up properly by testing the localization in simulation, using a staff-provided Bayes filter localization module. The results are shown below.

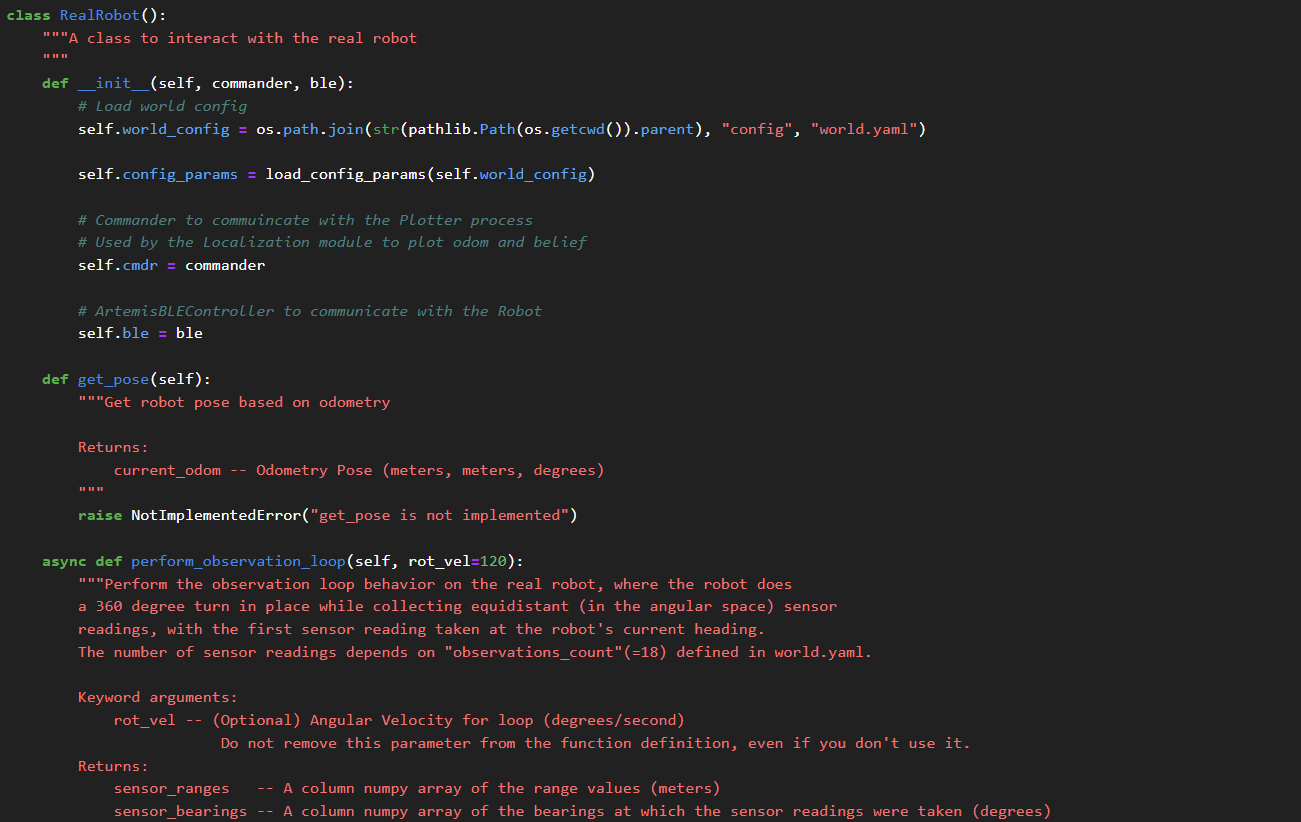

Localization on Real Robot

Since the update step being performed turns the robot 360 degrees in place to collect sensor data at each incremental turn angle, I reused the START_MAPPING command from Lab 9. I renamed it to START_LOCALIZATION for clarity, and increased the size of the arrays that store the sensor readings to 18, so that 18 sensor readings are collected at 20-degree increments as the robot spins. Other than this, I made no changes to the command. During my Lab 9 design, I had already parameterized the angle by which the robot turns for each incremental reading by making it a global variable with a corresponding SET_YAW_INCREMENT command for setting it from Jupyter.

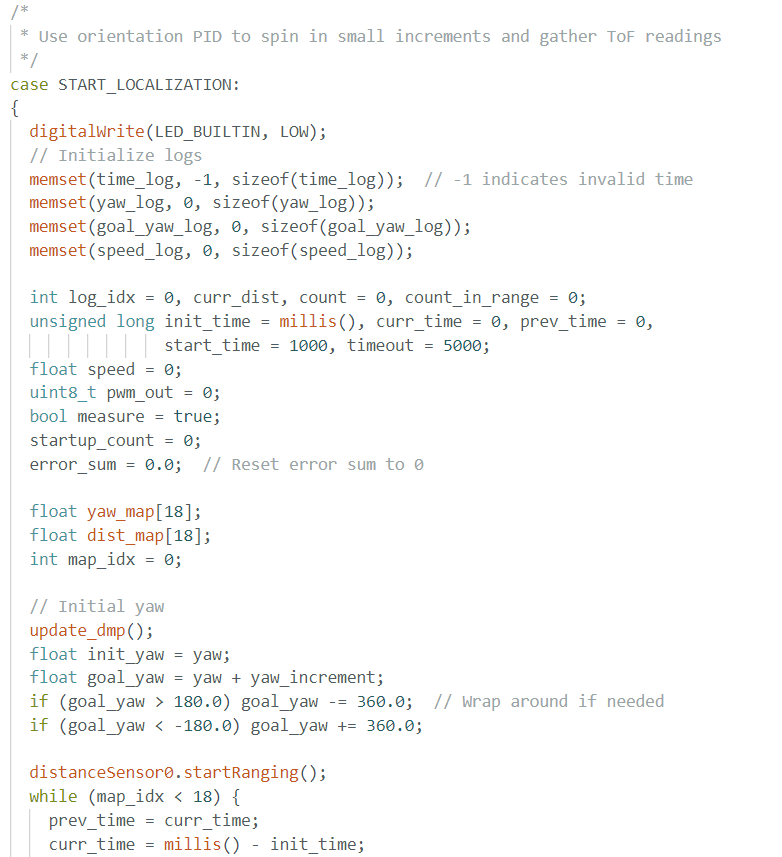

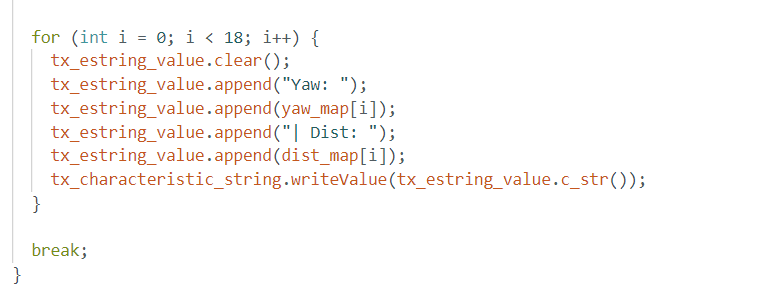

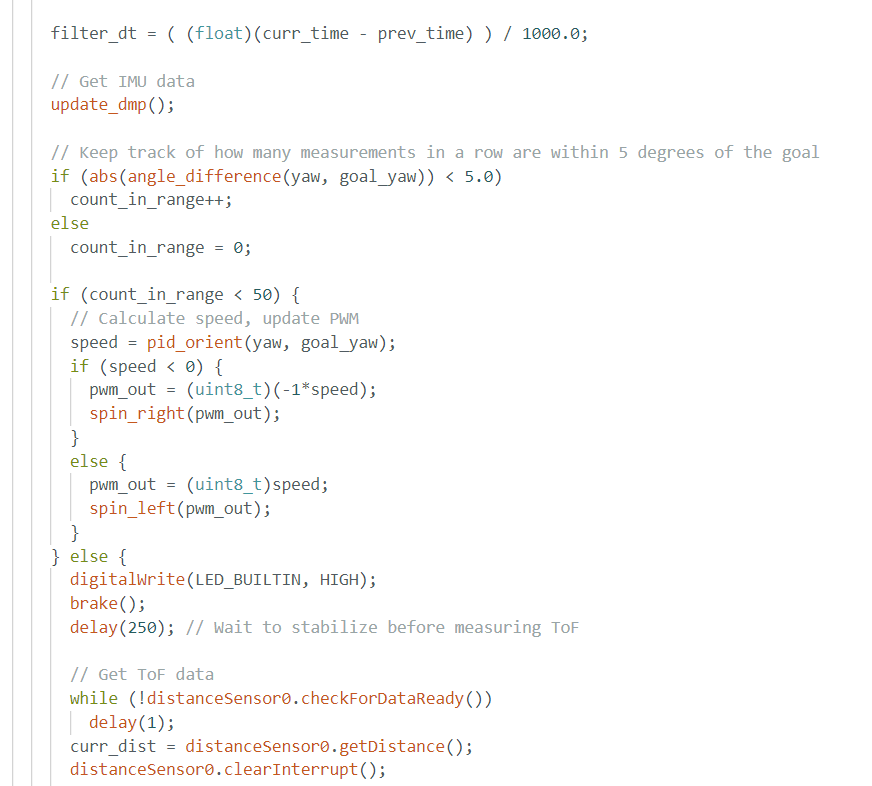

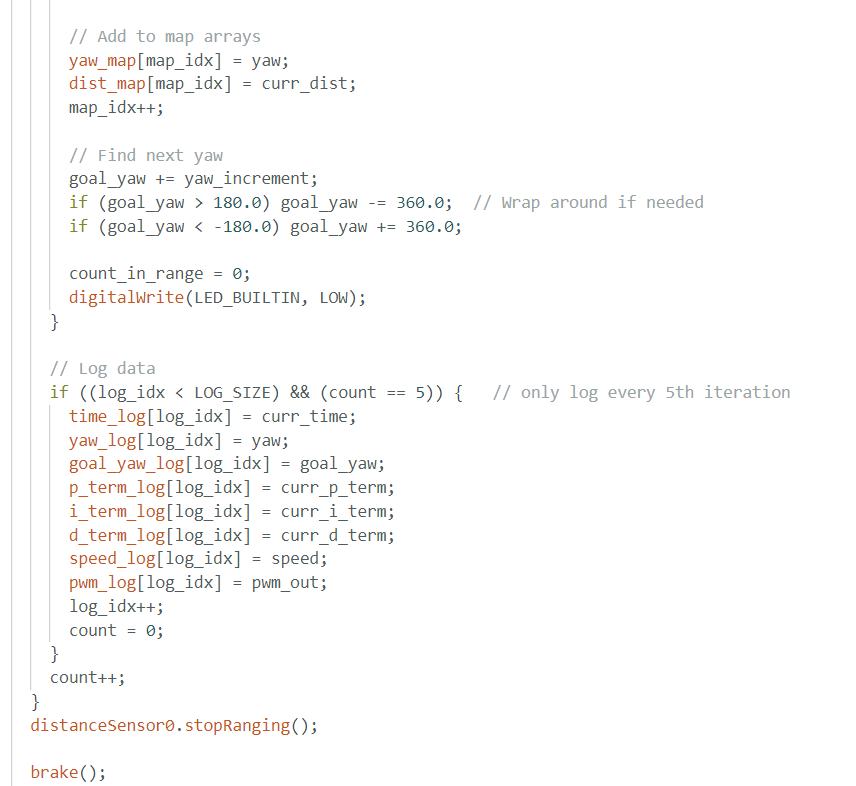

The full START_LOCALIZATION command.

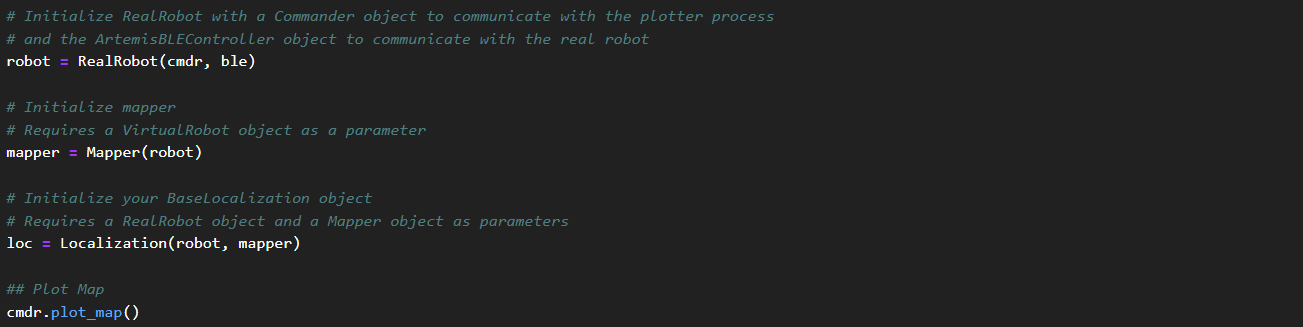

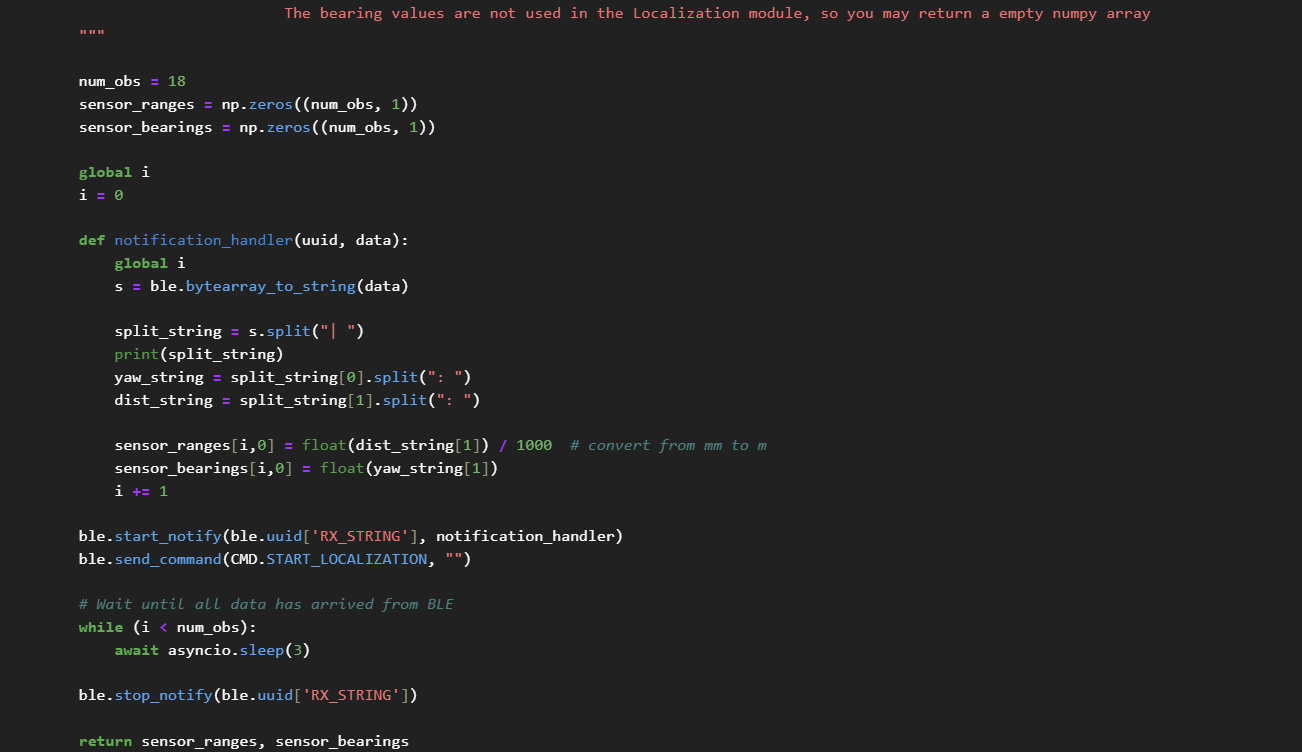

To use this command to perform the update step of the Bayes filter, I implemented the member function perform_observation_loop of the RealRobot class defined in the Lab 11 Jupyter notebook. The function simply sends the command to the robot and waits for the response. The robot stores the readings in an array and sends them all at once when it finishes. The Python function places the ranges and bearings in Numpy arrays and returns these.

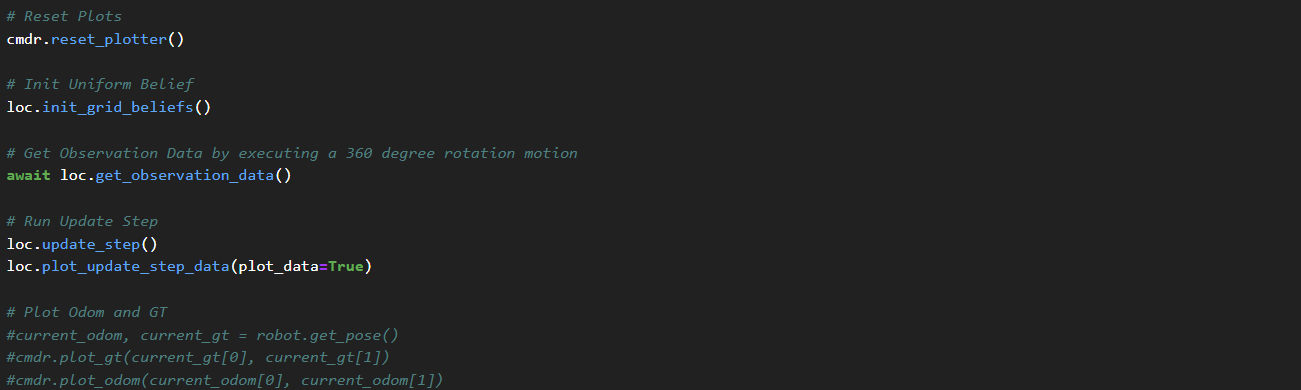

I then ran the udpate step as follows to localize the robot at a few points within the course.

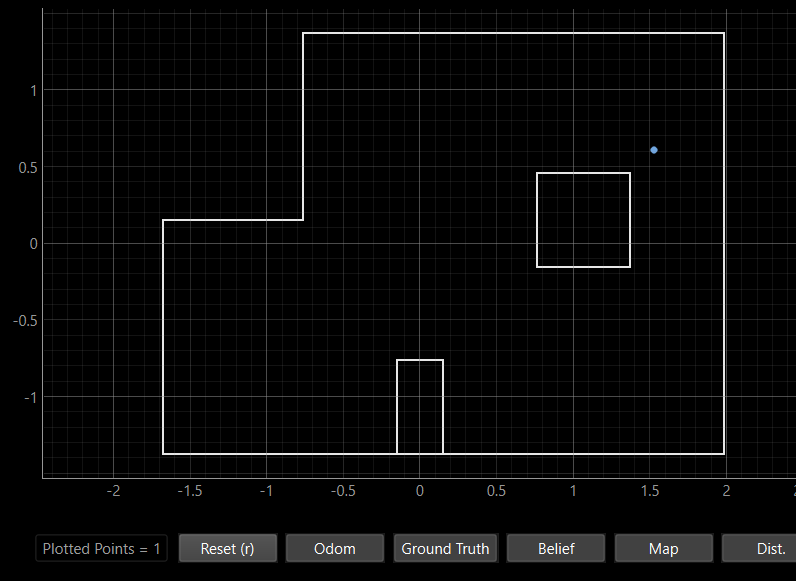

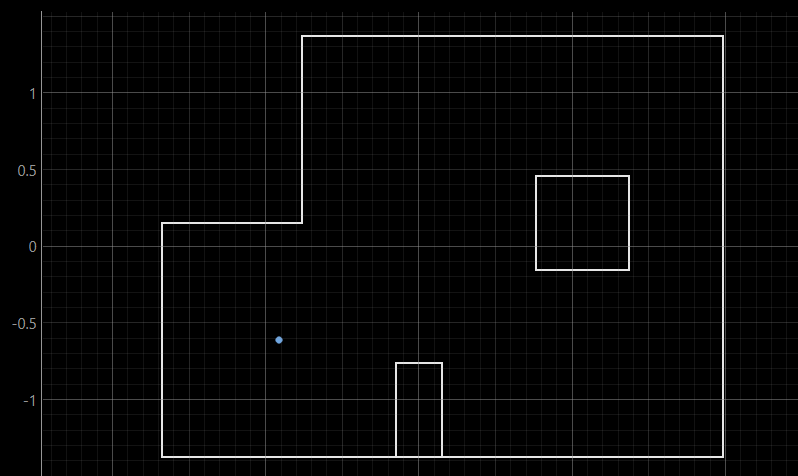

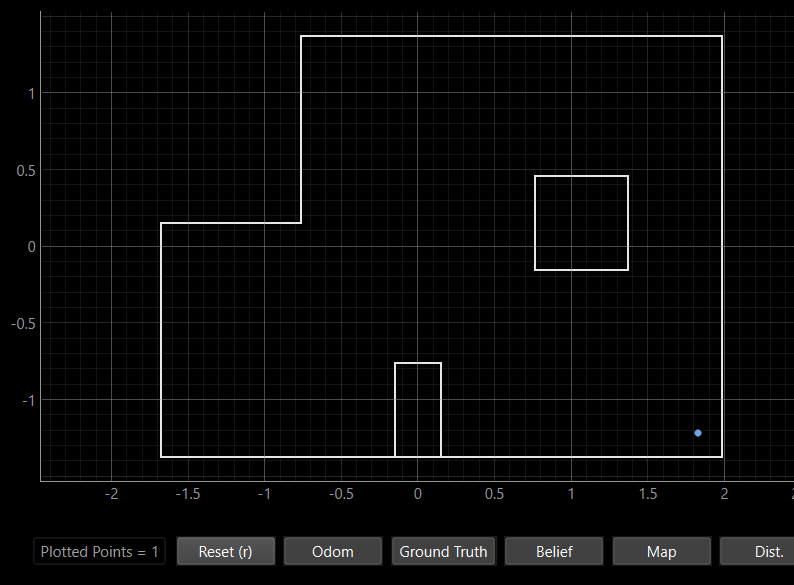

The results for each localization are shown below.

Though not perfect, the believed postitions shown in the plotter screenshots above are quite close to the actual positions of the robot. The accuracy of these localizations is also fairly consistent between runs, varying by no more than about 1ft. Sensor noise is likely the primary source of error.

Chosen Method

This lab is highly open-ended by nature, as there are many possible ways to get the robot to follow the intended path. My original plan was to implement a full Bayes filter, replicating how the virtual robot travels along the pre-programmed trajectory in the Lab 10 simulation. Much like the virtual robot in Lab 10, I planned to have my robot localize at each waypoint along the path using my Lab 11 code. I could then reuse my orientation PID controller to have the robot rotate to face the next waypoint, then reuse my Lab 5 PID controller to have the robot drive forward and stop on the waypoint.

When attempting to implement this, however, I began running into problems with the localizations. Though the robot could localize its position in the course fairly accurately and consistently in Lab 11, it was now very inaccurate, and very inconsistent. Rerunning code from previous labs, I determined that the issue is my front ToF sensor. It seems to no longer be able to consistently get accurate distance measurements. I tried brushing dust off the sensor, holding the wires steady while taking measurements, etc., but nothing seemed to fix it. It's likely a wiring issue, or perhaps the sensor itself has stopped working. Either way, this makes the Bayes filter method exceptionally difficult, as the localization is far too inconsistent.

To complete this lab without a working ToF sensor, I opted to switch to open-loop control. I had already strongly considered this as a potential alternative method to explore, since it could offer an exceptional increase in speed over the Bayes filter method. The tradeoffs are that open-loop control will not be as accurate or consistent. Open-loop control is also less extensible, since any desired path for the robot to travel requires writing code to explicitly control the robot to follow that path.

Implementation

Since open-loop control requires much experimentation with timing, etc., my approach was to use modular commands on the Artemis, to be called by Python. This way, things can be easily calibrated between runs without having to reupload any code to the Artemis.

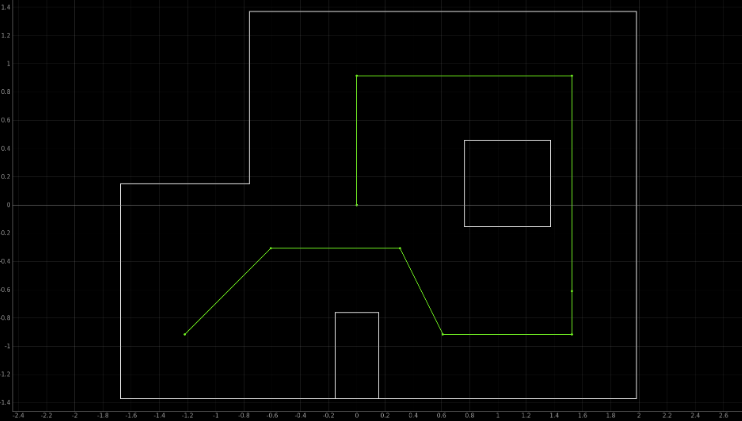

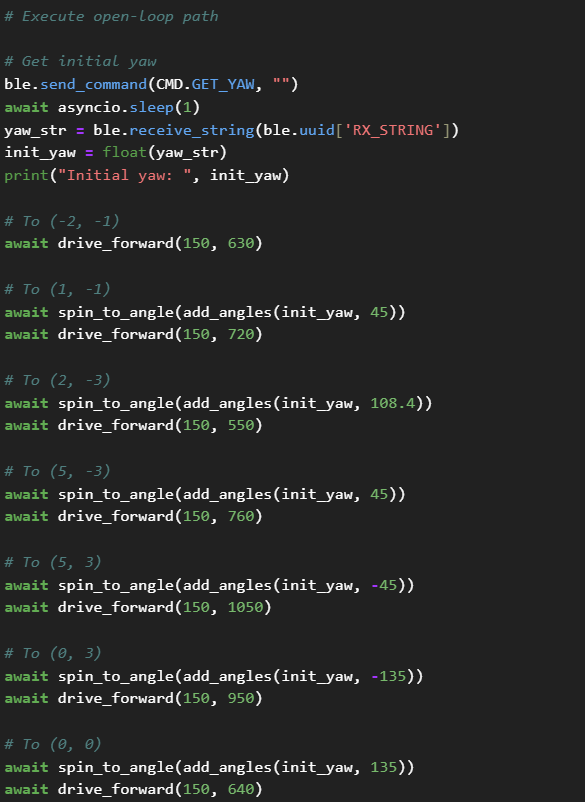

The sequence of steps to follow the path is to drive forward to a waypoint, rotate to face the next point, and repeat for all points in the path. I already had a command to make the robot drive forward at a given PWM output for a given amount of time, so this was perfect to reuse here.

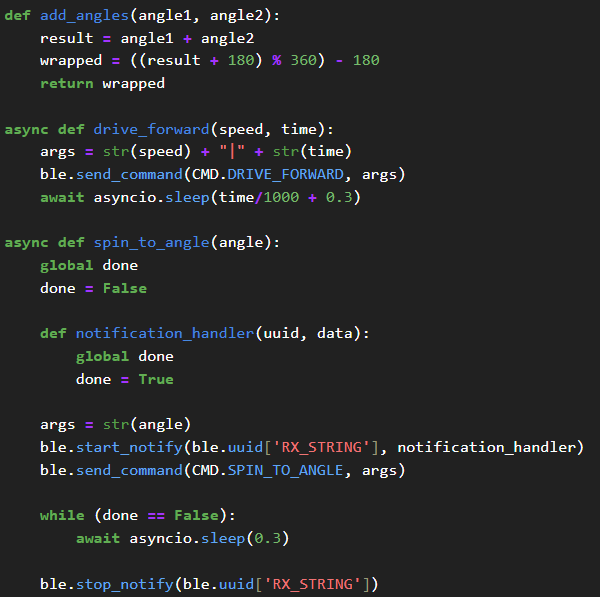

I made a new command to use the orientation PID controller from Lab 6 to spin in place to a desired yaw. To use this to control the yaw from Python, I also needed a new command that simply sends the current yaw to Jupyter.

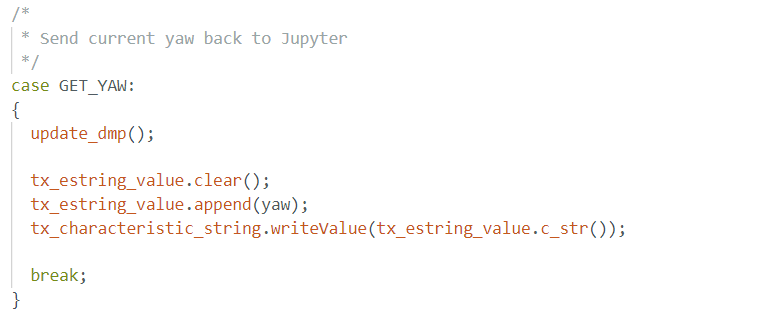

Command to send the current yaw to Jupyter.

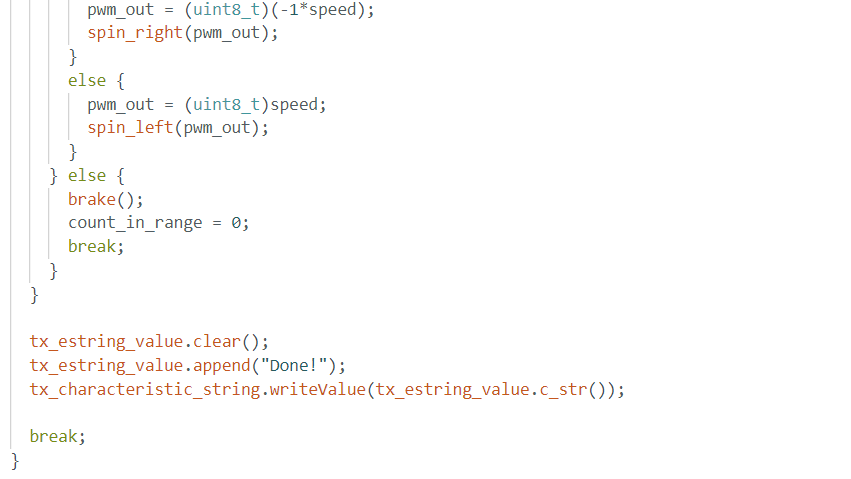

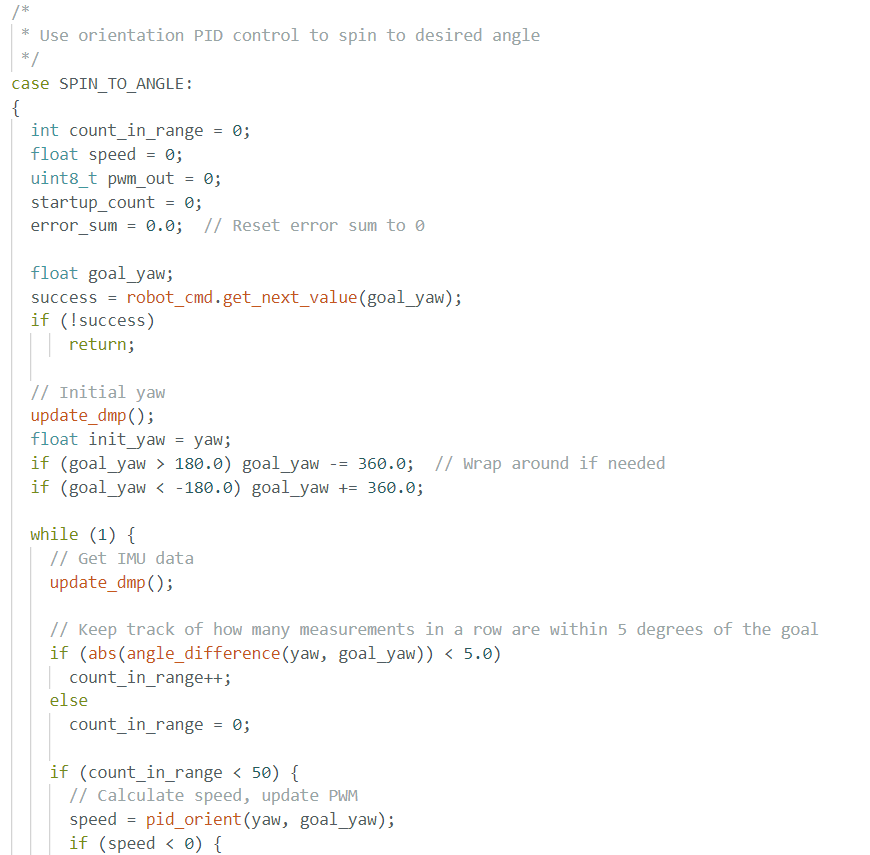

Command to spin in place to a desired yaw.

It's important that SPIN_TO_ANGLE sends a message back to Juypter when it's done, so that it and DRIVE_FORWARD can be repeatedly called in sequence in a single block of code in the Jupyter notebook. To use the commands and handle waiting for responses, I defined the following functions in Jupyter.

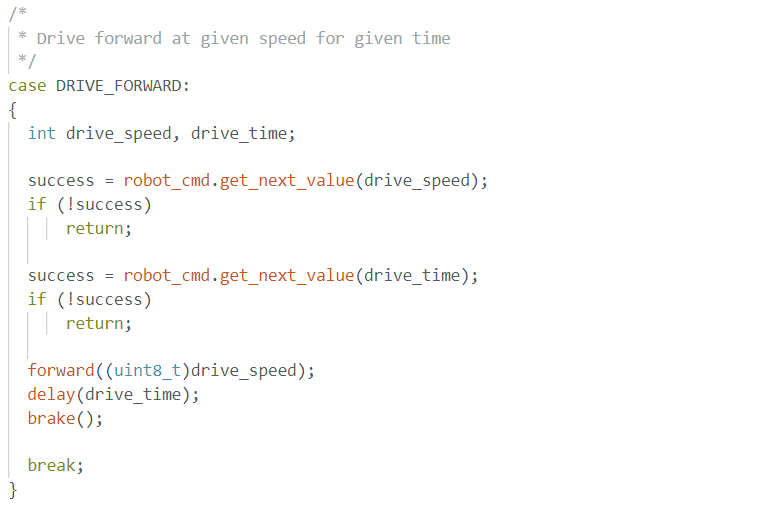

Note that DRIVE_FORWARD does not need to send a message back to Jupyter when it's done executing, since it runs for a set amount of time, given by one of the inputs. So, I just delay in Jupyter for that amount of time, plus 300ms to allow the robot to stop before proceeding. These functions made it simple to execute the sequence of motions to follow the path.

Obtaining the initial yaw is useful for stability since all rotations are done in reference to the initial yaw, preventing error from accumulating with each rotation. The angles by which the robot spins at each step were determined using simple trigonometry, and the time the robot spends driving forward to move between each point was detemined experimentally. The distance the robot drives for a given time is surprisingly consistent, though it steadily decreases as the battery loses charge. This relative consistently made experimenting with timing take much less time than I thought. The values shown in the script above were what I used for the run shown in the video below.

Though I was disappointed that my ToF sensor prevented proper closed-loop control using the Bayes filter method, I was pleasantly surprised by how effective open-loop control proved to be. As shown in the video above, the robot follows the path fairly accurately and quite fast. I realized that I technically still could have used the Bayes filter method, since my robot can still localize using the ToF sensor on the side. However, open-loop control would still be required for moving between points, since the front ToF sensor is needed for PID control. Thus, implementing the Bayes filter without a working front ToF sensor would have given similar results—it doesn't matter if the robot knows where it is if it can't see where it's going.
